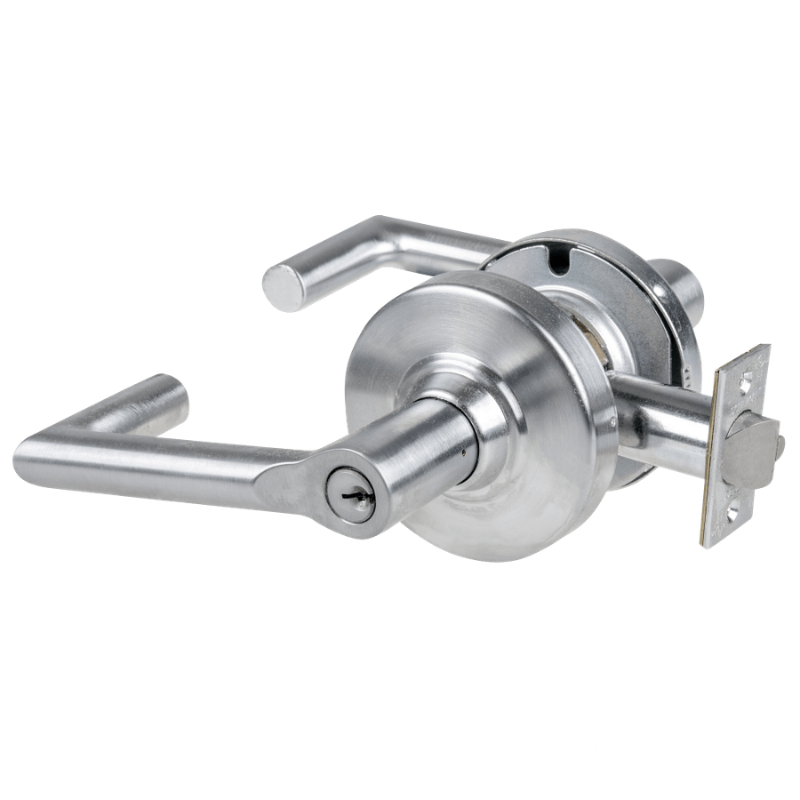

The Schlage ND91PD-BRK is a Grade 1 cylindrical entrance/office lock engineered for high-traffic commercial applications where durability matters most. Built with Vandlgard technology, the outside lever free-wheels when locked to protect the internal mechanism from forced entry and abuse, keeping the lock functional over time. It features the BRK (Boardwalk) lever design, a Schlage "C" keyway, and ships keyed random with two keys. With a 2-3/4 inch standard backset, a 4-7/8 inch strike, and a non-handed design, this lock installs easily on most standard doors and delivers dependable, ANSI-certified performance for offices, schools, and institutional settings.
Features
Functional Details
The ND91PD (entrance/office function) allows the door to be locked or unlocked by key from the outside. When the pushbutton is engaged, the outside lever is locked while the inside lever always retracts the latch for free egress. With Vandlgard, the locked outside lever spins freely to absorb abusive force rather than transmitting it to the lock mechanism.
| Manufacturer | Schlage |
|---|---|
| SKU | ND91PD-BRK |
| Function | Entrance/Office |
| Lever Style | Boardwalk (BRK) |
| Grade | ANSI/BHMA Grade 1 |
| Handing | Non-Handed |
| Keyway | Schlage "C" |
| Keying | Keyed Random, 2 Keys |
| Origin | Made in USA |
| Unit of Measure | Each |
| ANSI Number | F82 / A156.2 Series 4000 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
| Backset | 2-3/4 in. (standard) |
|---|---|
| Strike | 4-7/8 in. ANSI strike |
| Latchbolt Throw | 1/2 in. |
| Door Thickness | 1-3/8 in. to 2 in. standard |
| Chassis Type | Cylindrical |
| Cylinder | 6-pin (5-pin standard) |
| Lever Feature | Vandlgard free-wheeling when locked |
| Auxiliary Latch | Deadlocking |
| Bored Hole Diameter | 2-1/8 in. |
| Cross Bore | 1 in. |
| Cycle Rating | Grade 1 (exceeds industry standard cycles) |
