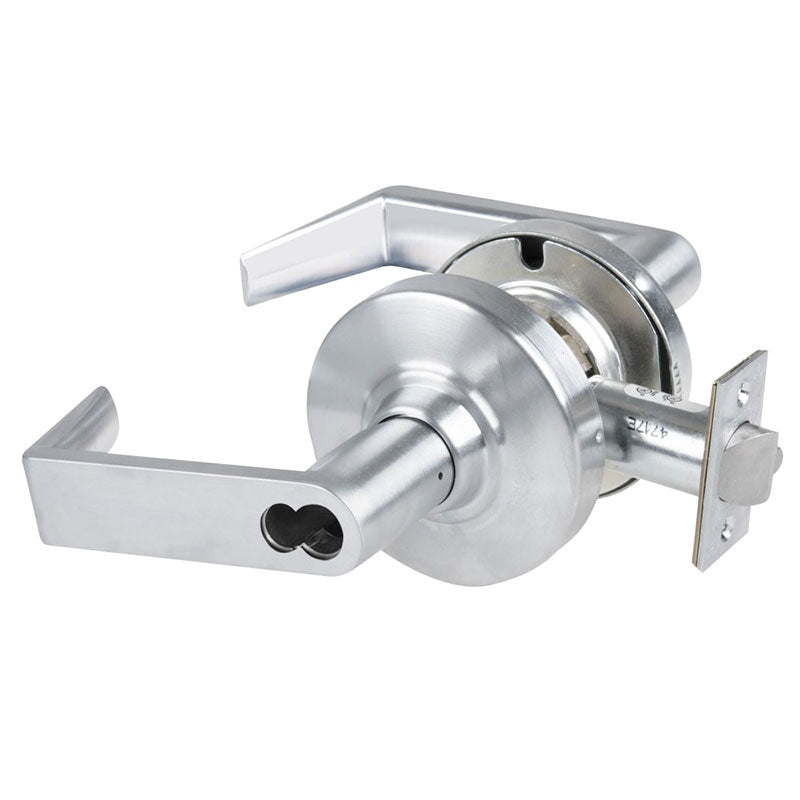

The Schlage ND92JD-RHO-626 is a Cylindrical Entrance VANDLGARD Lock, with a Rhodes Lever, is prepped for a Schlage FSIC Large Format Interchangeable Core, is Sold Less Core, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in 626 Satin Chrome Finish.
Entrance Function - Turn/push-button locking: Pushing and turning the button locks the outside lever, requiring the use of a key until the button is manually unlocked. Push-button locking: Pushing the button disengages the outside lever until unlocked by the key or by turning the inside lever. Vandlegard allows the outside spindle to disengage from the latch when locked. Inside lever is always free for immediate egress.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
