Description

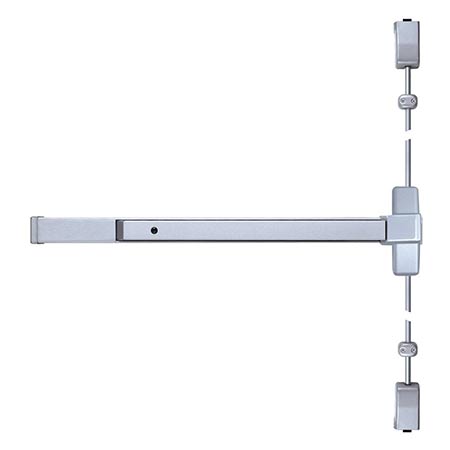

Tell 8400B-416 Heavy-Duty Grade 1 Surface Vertical Rod Panic Bar - 36" 689 Aluminum Finish, 70" Door Height, Exit Only
Surface Vertical Rod Exit Device - 36" with 7-foot Vertical Bars or 8-foot Vertical Bars
Heavy-Duty - Commercial - Grade 1 Panic Bars, Exit Devices, Vertical Rod Panic Devices, By Tell Manufacturing.
| Exit Device Trims | |||
| 8P03 | AL - Aluminum Finish | Exterior Pull with Cylinder Cut Out | |
| EMP808 | US32D - Stainless Steel Finish | Entry Ball Knob Trim | |
| EMP886 | US32D - Stainless Steel Finish | Storeroom Ball Knob Trim | |
| EMP875 | US32D - Stainless Steel Finish | Passage Ball Knob Trim | |
| TP81 | AL - Aluminum Finish | Exterior Thumbpiece Trim | |
| CTL881 | US26D - Satin Chrome Finish | Entry Lever Trim | |
| CTL886 | US26D - Satin Chrome Finish | Storeroom Lever Trim | |
| CTL875 | US26D - Satin Chrome Finish | Passage Lever Trim | |
Specifications
| Rail: | Fits 28" to 36" doors Easily field sizable |
| Latch: | Pullman latch bolts top and bottom stainless steel 1/2" throw |
| Backset: | 2-3/4" |
| Strike: | Adjustable with slotted holes for adjustments |
| Fasteners: | Accommodates wood or metal doors |
Certifications
| ANSI: | ANSI A156.3, Grade 1 |
| UL: | UL listed |
Document Center
Handing Chart
