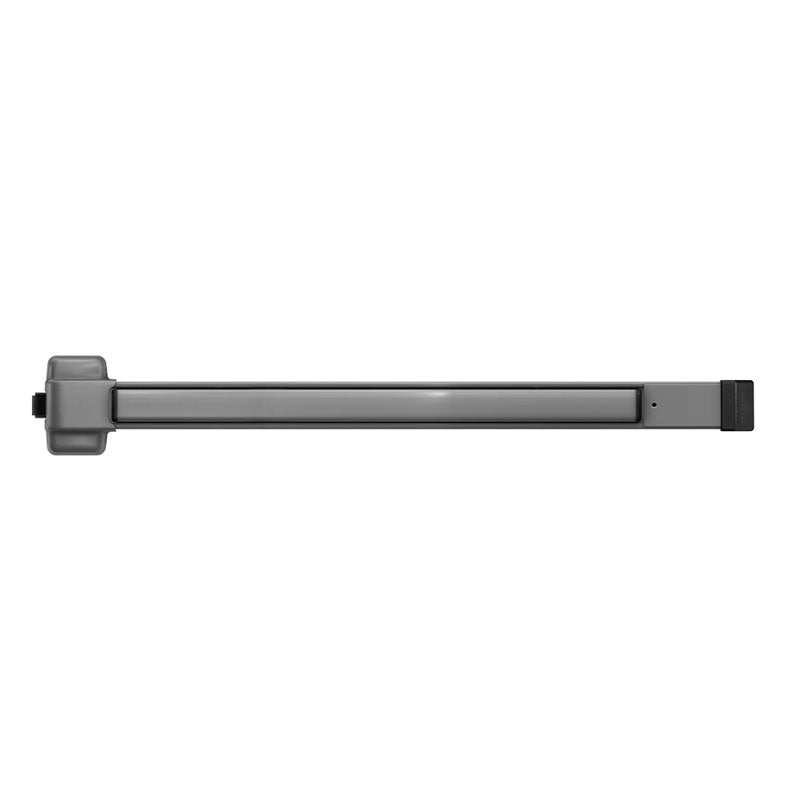

Von Duprin 22EO Grade 1 Rim Exit Device, Wide Stile Pushpad, Exit Only, Less Trim, Hex Key DoggingNon Handed

Multi-Function Device: Trims below decide the function of the device;
210NL Night Latch Trim - Key retracts latch bolt
210DT Dummy Trim - Pull when dogged
210K  Knob Trim - Key locks and unlocks
210K-BE Knob with Blank Escutcheon - Always operable, no cylinder
230EO Exit Only Plate - Exit only plate
230DT Dummy Trim - Pull when dogged
230NL Night Latch Trim - Key retracts latch bolt
230TP-BE Thumbpiece Blank Escutcheon - Always operable, no cylinder
230TP Thumbpiece - Key locks and unlocks
230L Lever Exit Trim - Key locks and unlocks
230L-BE Lever with Blank Escutcheon - Always operable, no cylinder

22 Series Rim Exit Device

Rim exit device for all types of single and double doors with mullion.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3' (914 mm), 4' (1219 mm)
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
• Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
• Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
• Latch bolt: Deadlocking, 3 /4" (19 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: GBK glass bead kit AX accessible device
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black
