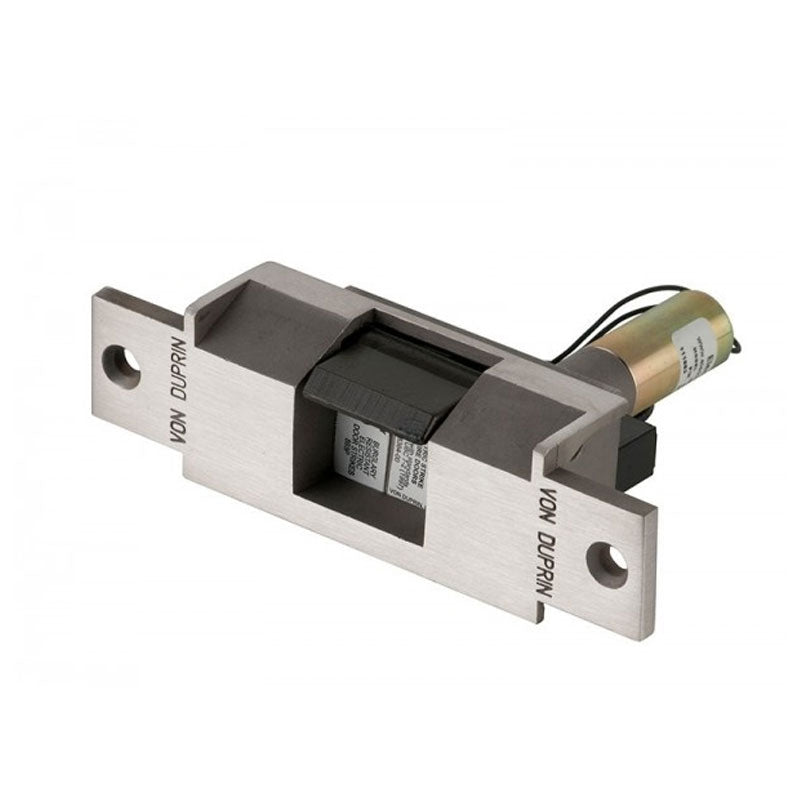

The Von Duprin 6211WF 24V 32D Electric Strike is Fail Secure (Electrically Unlocked), is 24 VDC, has a 4-7/8" x 1-1/4" Faceplate, is Fire Rated, and comes in US32D Satin Stainless Steel Finish. Von Duprin 6211WF 24V 32D Electric Strike is for use with Cylindrical or Mortise Locks on Single Doors, with a Wood Frame.
The Von Duprin 6200 Series is a heavy-duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and is designed to withstand abuse. The 6211 is designed for mortise locks without a deadbolt and cylindrical locks in single-door applications.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
- Non-handed design provides greater flexibility
- The strike box is adjustable to compensate for misalignment of the door or frame
- Two-piece plug connectors are furnished for ease of installation and for removal during strike servicing
- ANSI 156.5 Grade 1, 1500 lb hold-force rated
- UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
- Six finishes available to suit existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
