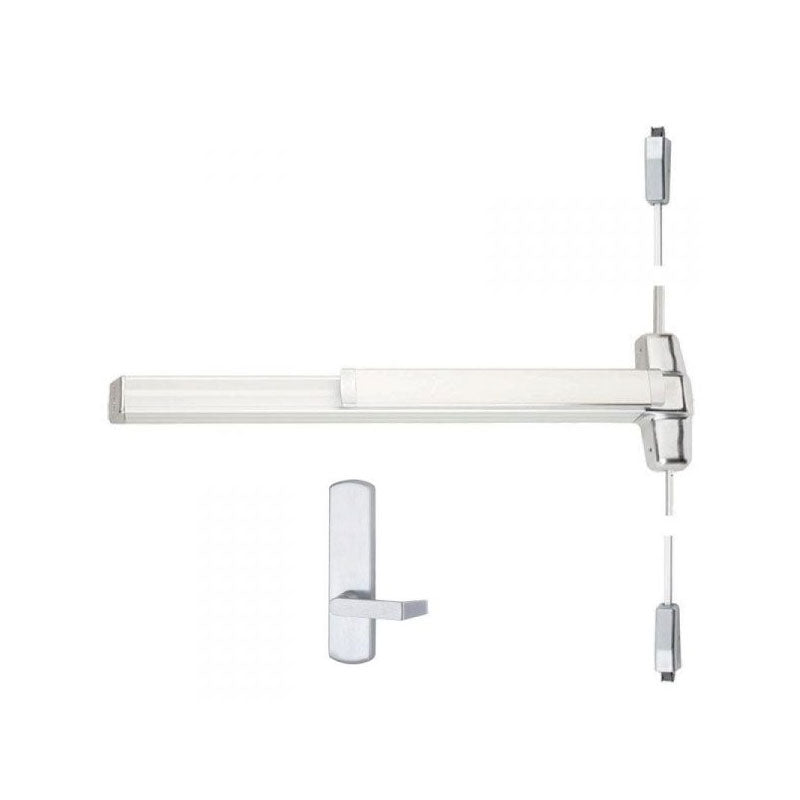

Von Duprin 9927-L-BE-06-F Fire Rated Surface Vertical Rod Exit Device, Passage Function, 06 Lever with Escutcheon, Grade 1, Wide Stile Pushpad, less dogging, for 84" Door Height

Features 996L-BE-R/V-06 Lever Trim

• Lever - blank escutcheon
• Always operable, no cylinder
• ANSI Function 14
• Escutcheon Plate Size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
• Projection: 2 7⁄8" (73mm)
• Handed/Field Reversible

9927 Series Surface Vertical Rod Exit Device

• Device functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from the device.
• Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm)
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
• Door undercut 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
