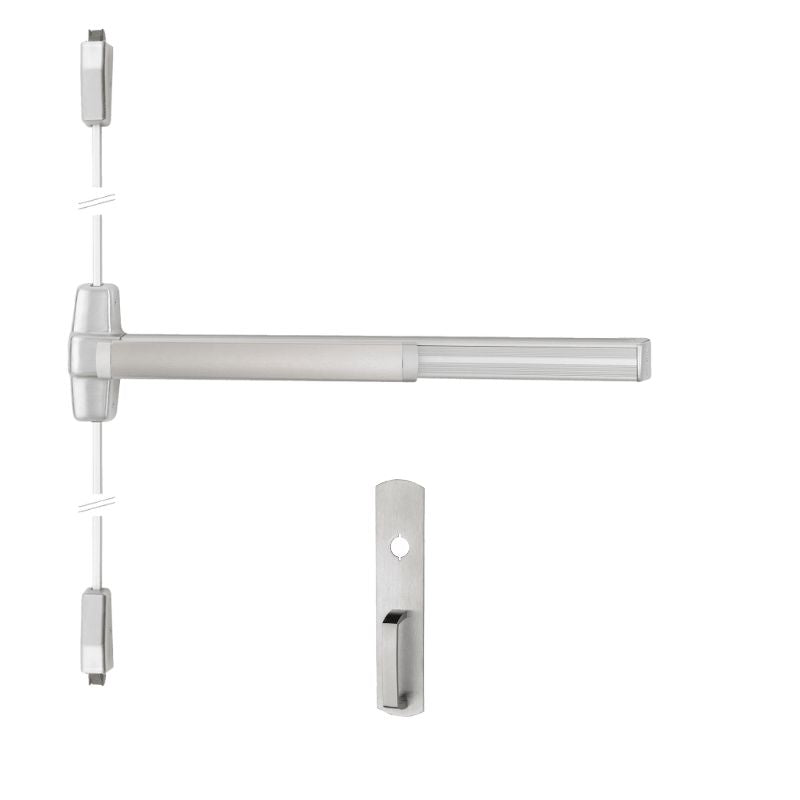

Von Duprin 9927NL-F Fire Rated Surface Vertical Rod Exit Device, With Night Latch Function Escutcheon Pull, For 84" Door Ht, Less Cylinder, No Dogging, Field Reversible, Grade 1
The Von Duprin 9927NL-F Fire Rated Surface Vertical Rod Exit Device features Night Latch Function and an Escutcheon Pull for use on 84" doors. This Grade 1 device is Field Reversible and does not include a Cylinder or Dogging option.
Features: Von Duprin 990NL-RV Night Latch Pull Trim
- Night Latch Function: Key Retracts Latch Bolt
- ANSI Function: 03
- Escutcheon plate size: 3" x 14 3⁄16" x 3⁄32" (76 x 360 x 2mm)
- Pull Center to Center: 5 1⁄2" (140mm)
- Projection: 2" (51mm)
- Cylinder Type: Rim Cylinder
9927 series surface vertical rod exits are made for high-traffic environments.
- Device functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from the device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
