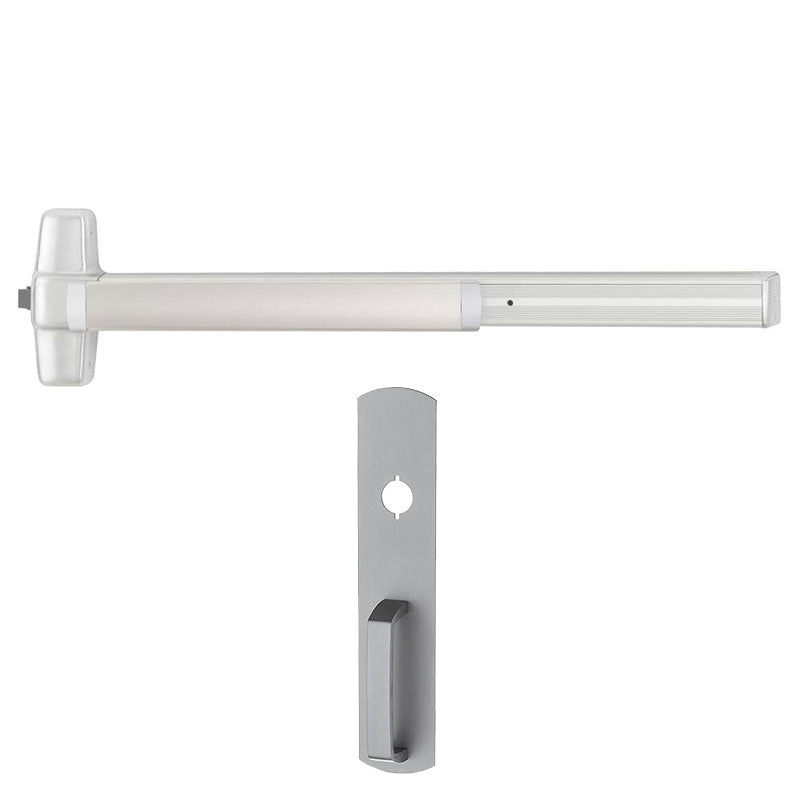

Von Duprin 99NL Rim Fire Exit Device, Fire Rated, Wide Stile Pushpad, Night Latch Function, 990 NL RV Escutcheon Pull, Less Cylinder, Less Dogging, Non-handed

• Available in 3' and 4' lengths
• Sold Less Cylinder
• Fire Rated

Features 990NL-RV Pull Trim (Night Latch Function):

• Key retracts latchbolt
• Rim and 1 ¼" mortise cylinder
• Escutcheon Pull Trim

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Satin Chrome
99NL-F-3-626
99NL-F-4-626

Satin Aluminum
99NL-F-3-628
99NL-F-4-628

Bright Chrome
99NL-F-3-625
99NL-F-4-625

Satin Bronze
99NL-F-3-612
99NL-F-4-612

Dark Bronze Anodized
99NL-F-3-710
99NL-F-4-710

Satin Brass
99NL-F-3-606
99NL-F-4-606

Bright Brass
99NL-F-3-605
99NL-F-4-605

Black Anodized Aluminum
99NL-F-3-711
99NL-F-4-711

Aged Bronze
99NL-F-3-643E
99NL-F-4-643E
