VonDuprin 9849EO-4 Concealed Vertical Cable Exit Device, Exit Only, 48" Bar

  • SKU: 9849EO4632D

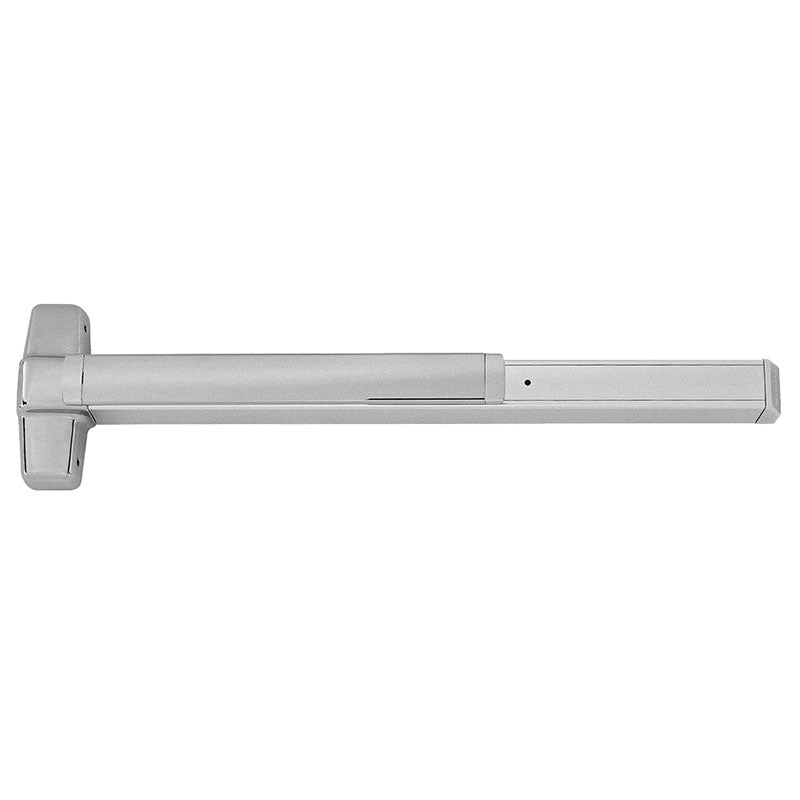

VonDuprin 9849EO-4-32D Concealed Vertical Cable Exit Bar
VonDuprin 9849EO-4-32D Concealed Vertical Cable Exit Bar
All VON DUPRIN Products

VonDuprin 9849EO-4 Concealed Vertical Cable Exit Device, Exit Only, 48" Bar

  • SKU: 9849EO4632D
$2,065.80/ea
In Stock
In Stock
Finish: US32D-630 Satin Stainless Steel

Von Duprin 9849 Grade 1 Concealed Vertical Cable Exit Device, 48" Device, 82" to 96" Door Height, Exit Only, Hex Dogging, Satin Chrome Finish, Field Reversible

9849 Concealed vertical cable device

9849 Concealed vertical cable device for use on single or double metal
doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3
2014, Grade 1. The 9849 device has a smooth mechanism case and the 9949 device
has a grooved case. The concealed vertical cable device is non-handed except when
the following device options are used: SD (special dogging), or SS (signal switch).

Manufacturer Von Duprin
SKU 9849EO 4
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number A156.3 2014
Restrictions None
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated No
Burglar Rated No
ADA Compliance No


Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Cable
Mechanical Function Exit Only, Accepts Various Trim
Device Length 48"
Hand Field Reversible
Dogging Options Hex Dogging
Top Strike 249
Strike Bottom 349
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 4  1/4"
Door Material Metal
Door Width 34" to 48"
Door Height 82" to 96"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible Yes
Product Type Concealed Vertical Cable Exit Devices

Product Cut Sheet
