Description

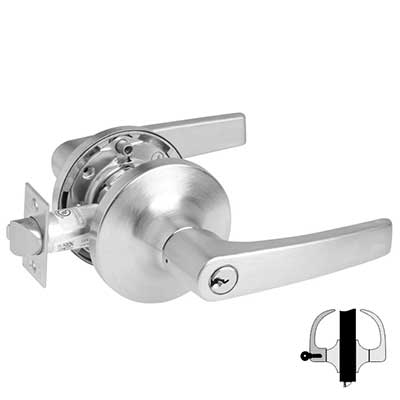

Accentra (Formerly Yale) AU5305LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset- Storeroom Function, AU Lever, Schlage "C" Key Way, US26D/626 Satin Chromium Finish
The Accentra (Formerly Yale) AU53075LN 626 is a Grade 2 Medium Duty Cylindrical Lever Lockset with a 2 1/8" bore, and 2 3/4" backset. The AU stands for the Augusta Lever. This 5300LN Series lockset comes in an 05 Storeroom Function. With the Storeroom Function, you always need the key to get back into the door when it closes, but you can always get out from the inside. The cylinder is a Conventional Schlage C fixed Core Keyed Randomly. The finish is a US26D/626 Brushed Satin Chrome Finish.
Product Specifications
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | AU5305LN 626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F86 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specifications
| Function |
05 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380AN |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
