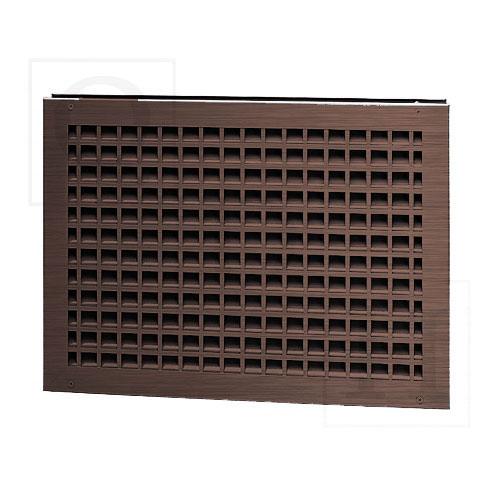

Air Louvers 1900ASG 24x12-B Security Door Louver Fire Rated Adjustable With Security Grille

AIR LOUVERSSKU: 1900ASG2412BZ

Price:
Sale price$498.00
In Stock

Description

Air Louvers 1900ASG 24x12-B Security Door Louver Fire Rated Adjustable With Security Grill

Door Louver with Fusible Link activated at 165 Degrees F that is Listed by UL and WHI. Ideal for Use in Fire Doors with up to 1-1/2 Hour Rating for Security & Detention Applications. Drilling Holes in the Door for Installation is not required.

Material: 18 gauge CRS frame. Min size 10" x 6", Max 24" x 24"

Louver: Z-blade louvers riveted to operating bar and 1-9/16" deep frame at 1" intervals. Mechanical stop holds blades open.

Frame & Grille: Mitered and welded corners. 12 gauge security grille welded to louver core with 13/16" square openings, screws fastened through the prepared frame into louver core; this mounting method leaves corridor side of frame free of fasteners for aesthetic and security purposes.

Operation: Adjustable blades of 16 gauge CRS pivot on cadmium-plated steel rivets. The blades are operated by a manual adjusting lever. A spring-loaded fusible link mechanism is incorporated into the design; upon melting of the link, the action bar is actuated, thereby closing and locking all of the blades.

Door: for 1-3/4" steel or composite door. Door cutout = order size

Fasteners: #8 x 3/4" Phillips flathead screws SMS.

Free Flow Area: 45% free area

Fire door testing: CAN/ULC S104, NFPA252, UBC 7-2-94, UL10(b), UL10(c). Installed in accordance with NFPA-80. Louver size shall not exceed maximum width and height shall not be less than 10" and 6", respectively. Louvers may be provided for classified hollow metal type and composite type fire doors. Consult with the Local Authority Having Jurisdiction (AHJ) to determine appropriate standards. The louver frame will be labeled with a Listing mark.
