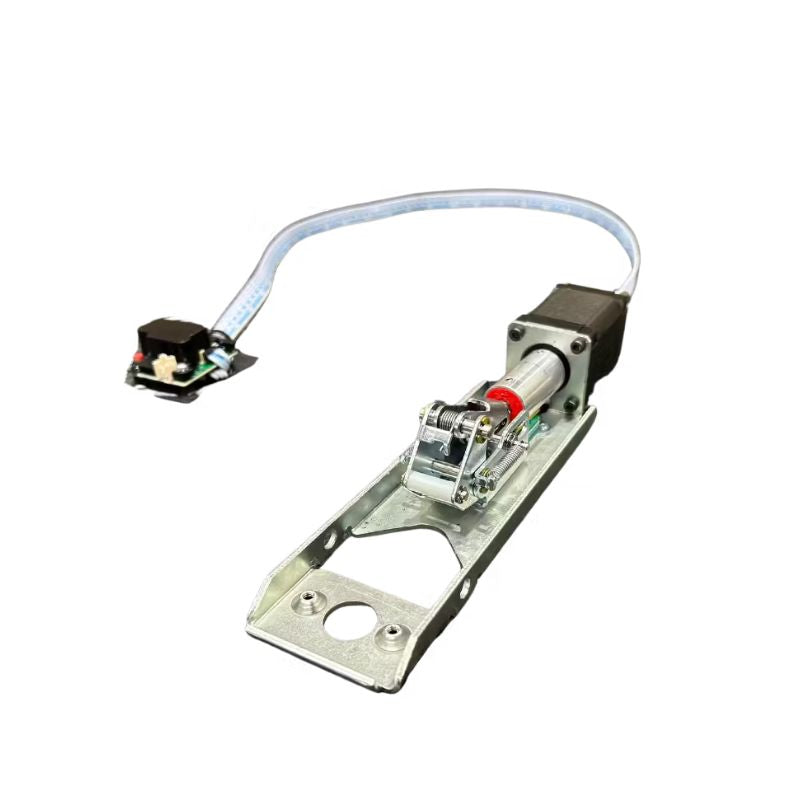

Command Access Technologies MLRK1-SGT Motorized Latch Retraction Kit, For Sargent 80

The MLRK1-SGT is a strong, easily installable motorized latch retraction kit suitable for Sargent 80 series exit devices. Designed with a custom assembly by CAT, this kit enhances the pulling force for efficient operation. Installation requires drilling only a single hole for the raceway. Equipped with our latest 1-touch PTS “Push to Set” technology, the kit simplifies post-installation adjustments, ensuring a smooth and hassle-free setup.

• Works on Sargent 5CH devices
• New Generation MM5 Smart Module: Onboard diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick & Easy Post-installation adjustment
• Electric Dogging rated for continuous duty - Auto-re-engage if push pad is pulled from dogged position
• One Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide the installer with the convenience of placing the Command Locking Hardware PS in a centralized location, i.e., the same closet as the access control panel
• 8” cable with robust quick Molex connector for MM5 module to connect to incoming power.
• 3 Year “No Hassle” Warranty

• Work with Sargent 80 Series Exit Device

MLRK1-VD22 is compatible with:

Sargent 8800 Series Rim Exit Devices
