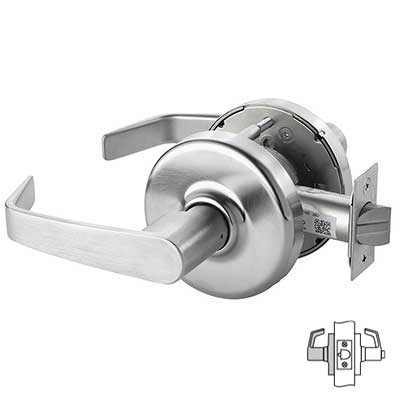

Corbin Russwin CL3320-NZD-626 Cylindrical Lockset, Privacy Function, Newport Lever, Non-Keyed, Grade 1, 2-3/4 Backset, 4-7/8 Strike, Satin Chrome Finish, Non-Handed
Function: Privacy, Bedroom or Bathroom
- Throw-off latch bolt by lever
- Outside lever locked by push button. (Lever handle is freewheeling in the locked position)
- Outside lever unlocked by emergency release tool outside, by rotating inside lever or by the closing door
- Inside lever always free
Note: The CL3300 Cylindrical Lever Lock series has been discontinued mid 2023 and replaced by the advanced Corbin Russwin CLX3300 Series, which offers superior security features and performance.
Features
Handing Non-handed (Except FZD trim)
Door Thickness 1-3/4" (44mm) - 2" (51mm) standard. Optional: Over 2"(51mm) - 2-1/4" (57mm)
Lock Chassis Steel, zinc dichromate for corrosion resistance.
Backset 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm) Latchbolt Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors
Auxiliary Latchbolt Deadlocking latch bolt prevents manipulation when the door is closed.
Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Optional: rounded corners
Strike Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths, and ANSI wrought strike box available
