Description

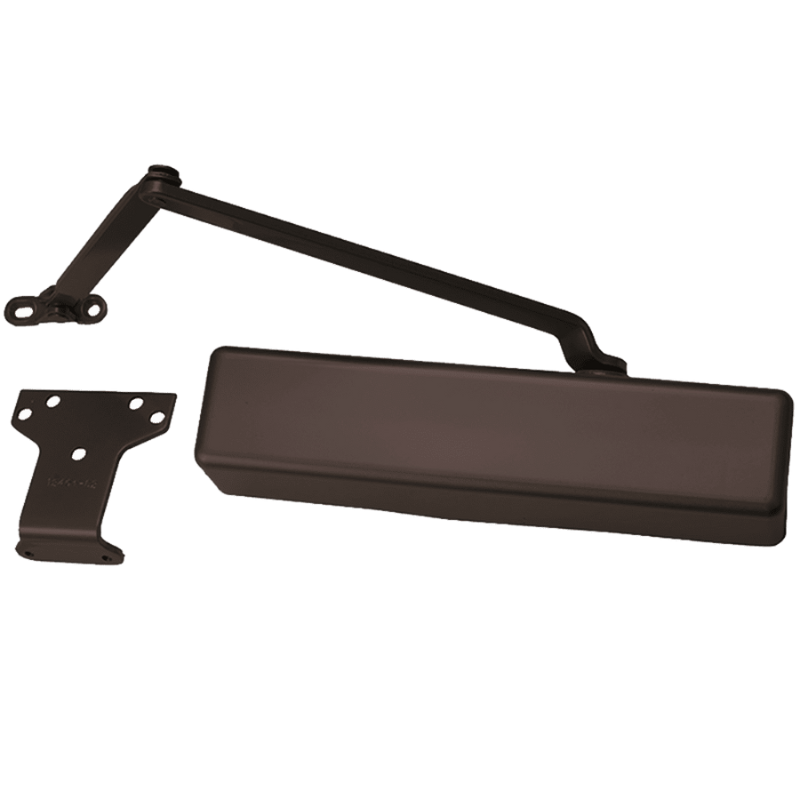

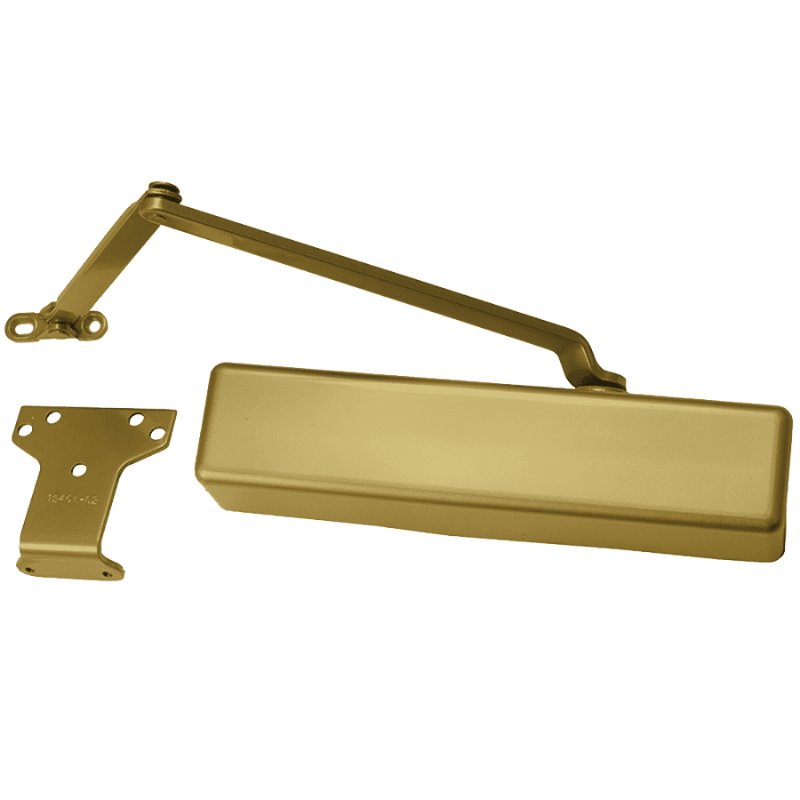

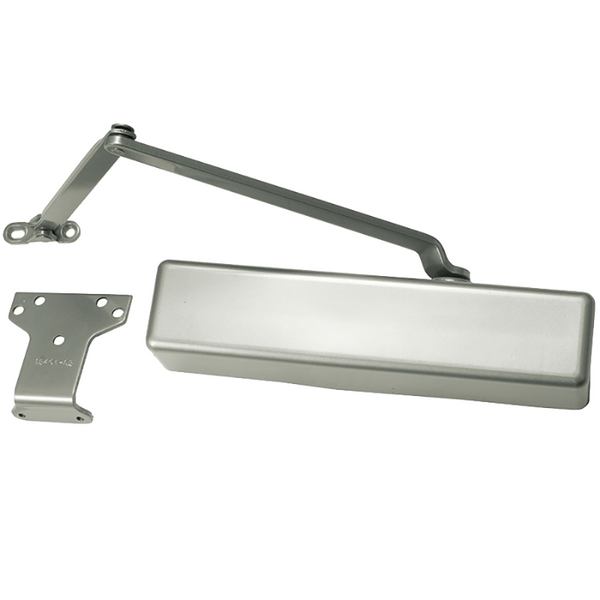

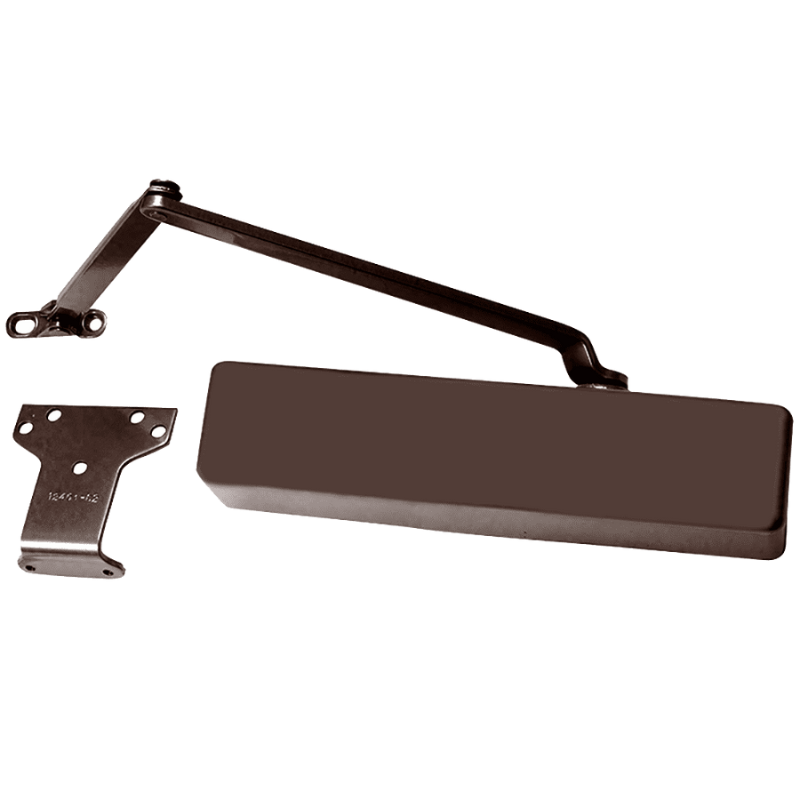

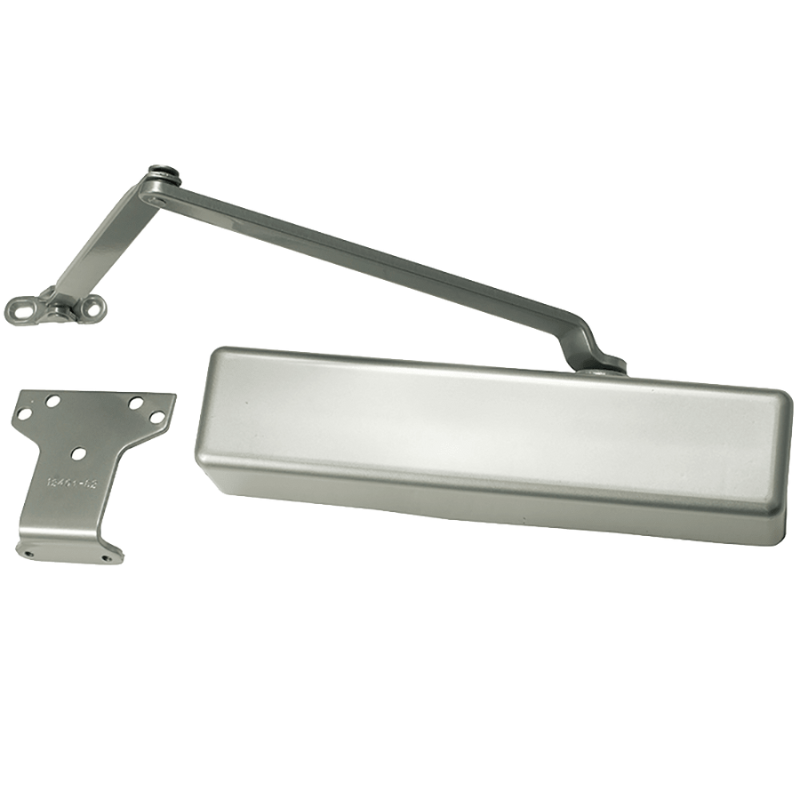

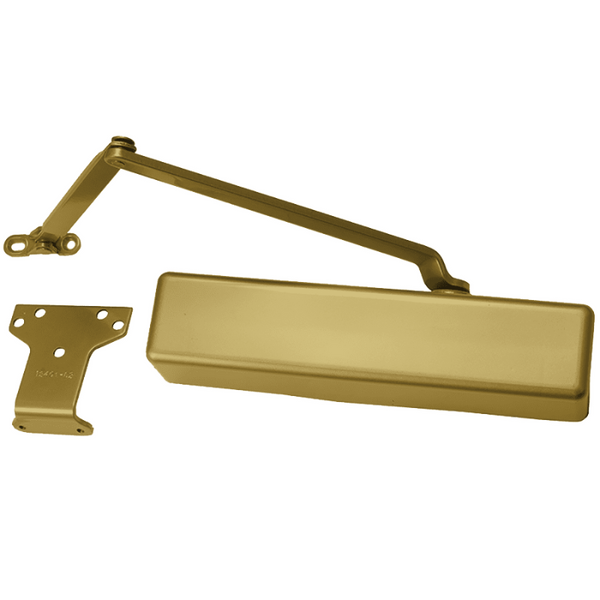

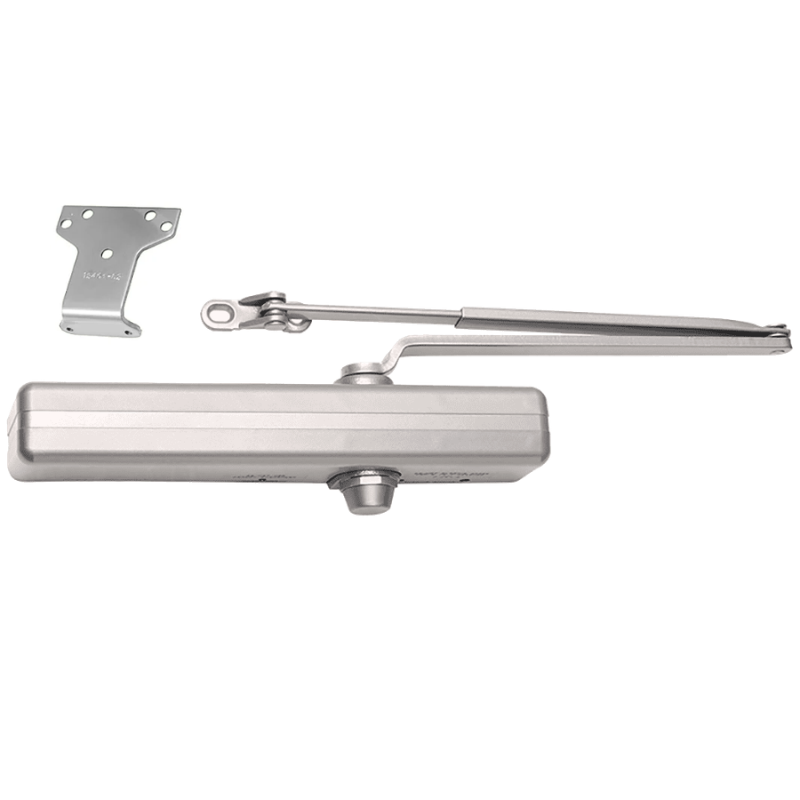

LCN 1461-RW/PA-CYLDEL Surface Door Closer, Regular Arm with Parallel Arm Shoe, Delay Action Cylinder, Slim Plastic Cover, 180 Deg. Swing, Non Handed, Grade 1
The LCN 1461-RW/PA-CYDEL Surface Door Closer features a Regular Arm with a Parallel Arm Shoe, Delay Action Cylinder, and Slim Plastic Cover, making it a Grade 1 product for optimal functionality and durability.
Features:
- Standard 1460 series closer shipped with regular arm, a slimline plastic cover, and self-reaming and tapping screws
- Cover option; Standard (Slimline)
- Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
- Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
Specifications
| Materials: | High-strength cast iron cylinder One-piece forged steel piston Heat-treated pinion All-weather fluid eliminates seasonal adjustments High efficiency, full complement, low friction bearings Tamper-resistant regulating screws Full rack and pinion hydraulic action Quiet, low friction track and roller combination for all single lever arm closers |
| Mounting types: | Hinge (Pull) Side Top Jamb (Push) Parallel Arm |
| Cover: | Plastic Designer Series |
| Cylinder: | Non-Handed Accessibility Non-Sized Delayed Action |
| Arm Functions: | Regular Arm and Parallel Shoe |
| Finishes: | Powder Coat Plated |
| Warranty: | 10-year limited warranty |
| Manufacturer: | LCN |
Certifications
| ADA: | ADA Compliant |
| ANSI: | A156.4 Grade 1 |
| UL: | UBC 7.2 (1997) and UL 10 C Compliant |
Product Specs
| Manufacturer | LCN |
| SKU | 1461-RW/PA-DEL |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | VARIES |
| BAA Qualified | Yes |
| UPC Code | 43156589449 |
| Limited Warranty | 30 Years |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull the Side |
| Mounting Style | Tri Mount |
| Hold Open | Yes |
| Degree Hold Open | 180 Deg. |
| Hand | Non-Handed |
| Degree Swing | 180 Deg. |
| Cover | Slim Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
