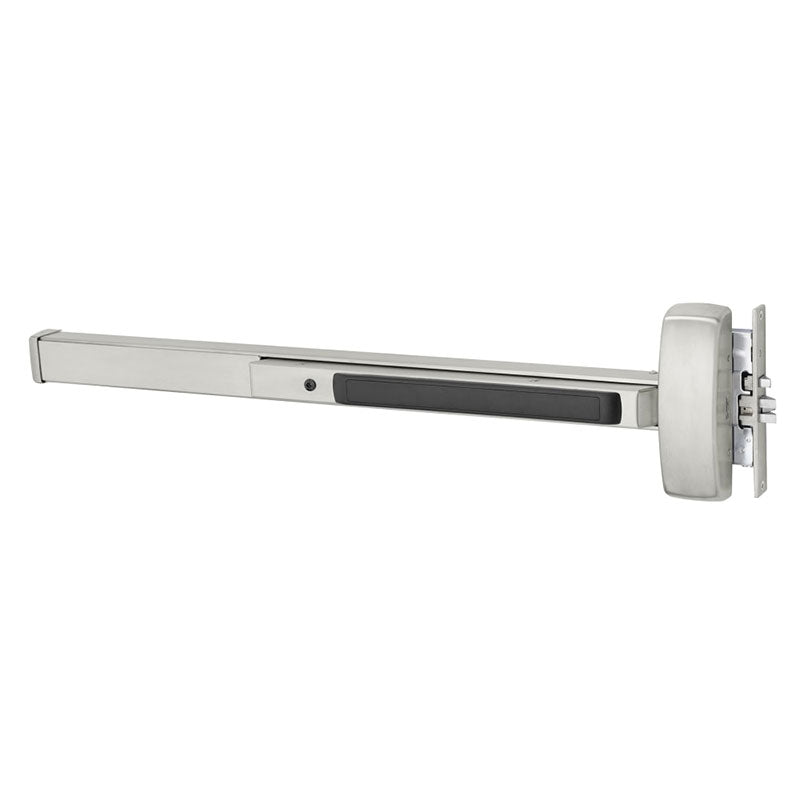

The Sargent 12-8904F-US32D is a Fire Rated Mortise Device Exit Bar, with a Wide Stile Pushpad, is 36" Long and accommodates door 33"-36" wide, is Night Latch Function, comes Less Dogging, is handed Left Hand Reverse, is Grade 1, and comes in Satin Stainless Steel Finish
8900 Series Mortise Exit Devices
The 8900 Series is for single-door applications
8900 Mortise Lock Exit Device has concealed single-point guarded latching for additional security and is designed for standard-width stile applications on wood and metal doors.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
