Description

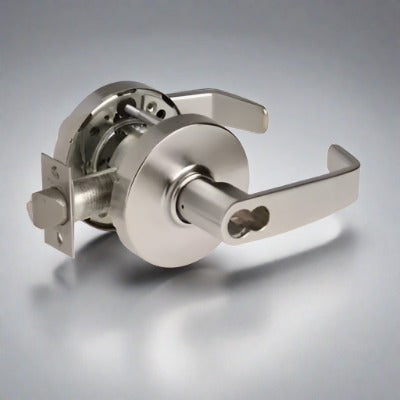

The Sargent 28-70-10G04-LL comes with a Storeroom or Closet Function with a backset of 2 3/4", 4 7/8" Strike, and an L rose and L lever, prepared for a Small Format Interchangeable Core (SFIC). Sargent's 10 Line Lock holds an ANSI/BHMA Grade 1 certification, ensuring compliance with cycle and strength requirements. It surpasses cycle testing standards by ninefold, enduring an impressive 9.6 million cycles, and exhibits 1.5 times the resistance to torque. As a result, this lock is ideal for various settings such as institutions, schools, offices, healthcare facilities, storage areas, and classrooms.
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Heavy Duty |
| Limited Warranty | 7 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| ANSI Function |
F86 - Storeroom |
| Handing | Not Handed |
| Door Thickness | 1-3/4" - 2" |
| Std. Latch Number | 44491 |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
