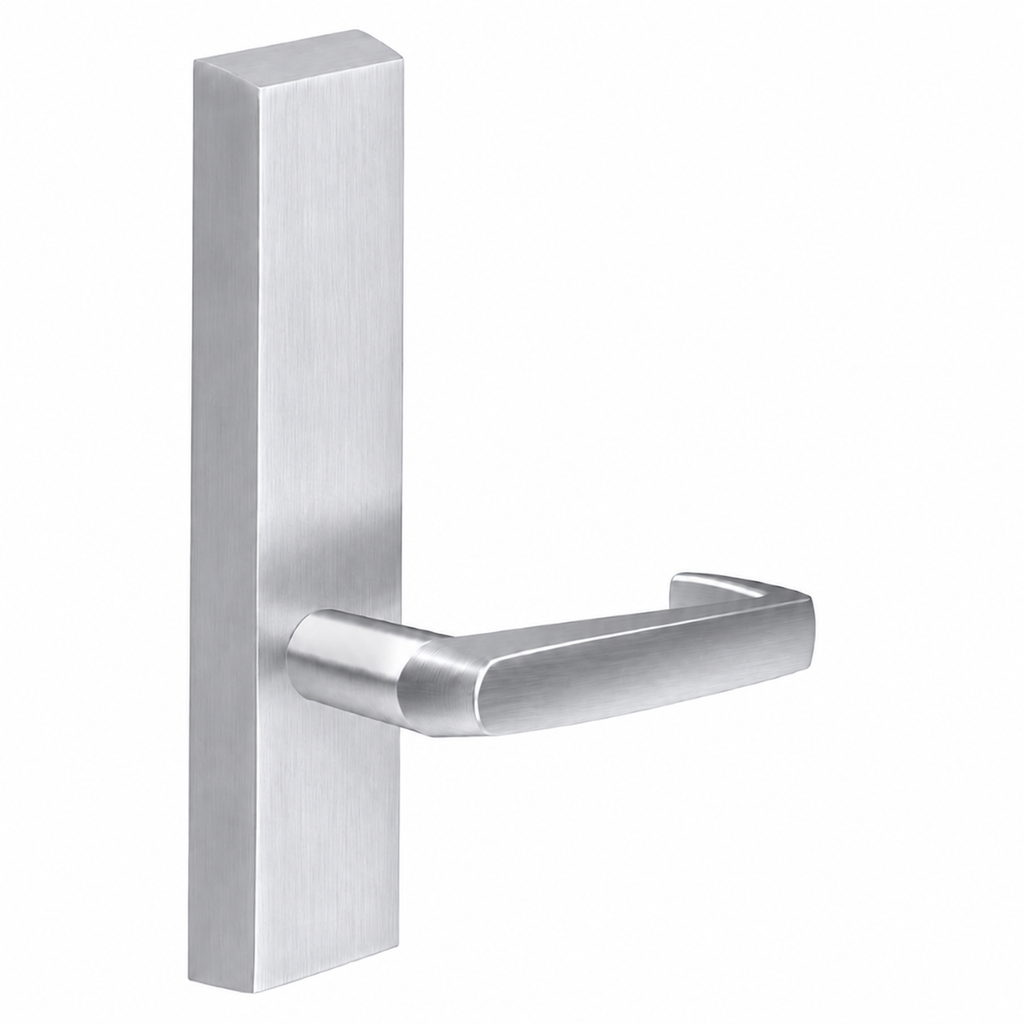

Sargent 715-8-ETNJ Exit Device Trim, Passage Function, "ET" With NJ Lever, Non Keyed For 8700, 8800, 8888, and 8500 Series Exit Devices, Grade 1

The Sargent 715-8-ETNJ Exit Device Trim, Passage Function, "ET" With NJ Lever, Non Keyed For 8700, 8800, 8888, and 8500 Series Exit Devices, Grade 1 is an exterior trim solution designed for use with compatible Sargent exit devices in commercial applications. This Grade 1 trim features the ET escutcheon style with an NJ lever and a non keyed passage function for doors that require outside lever operation without key control. Built for use with 8700, 8800, 8888, and 8500 Series exit devices, the 715-8-ETNJ trim provides dependable performance and code-oriented durability for high-traffic openings.

Features

• Sargent 715-8-ETNJ exit device trim is designed for use with 8700, 8800, 8888, and 8500 Series exit devices.
• Passage function allows exterior lever operation without key locking capability.
• "ET" trim configuration includes the NJ lever design.
• Non keyed construction is suited for openings that do not require cylinder control.
• Grade 1 construction supports demanding commercial and institutional applications.

Functional Details

The passage function provides free exterior lever operation at all times, making this trim appropriate for doors where keyed entry control is not needed. In this non keyed configuration, the outside lever remains active for straightforward access when paired with the compatible exit device.

• Passage trim with pull when outside device operation is desired.
• For use with 20, 30 and 47 functions.

Included Components

This trim includes the ET escutcheon configuration with NJ lever and is intended for installation with compatible Sargent 8700, 8800, 8888, and 8500 Series exit devices. Cylinder components are not included because this is a non keyed passage trim.
