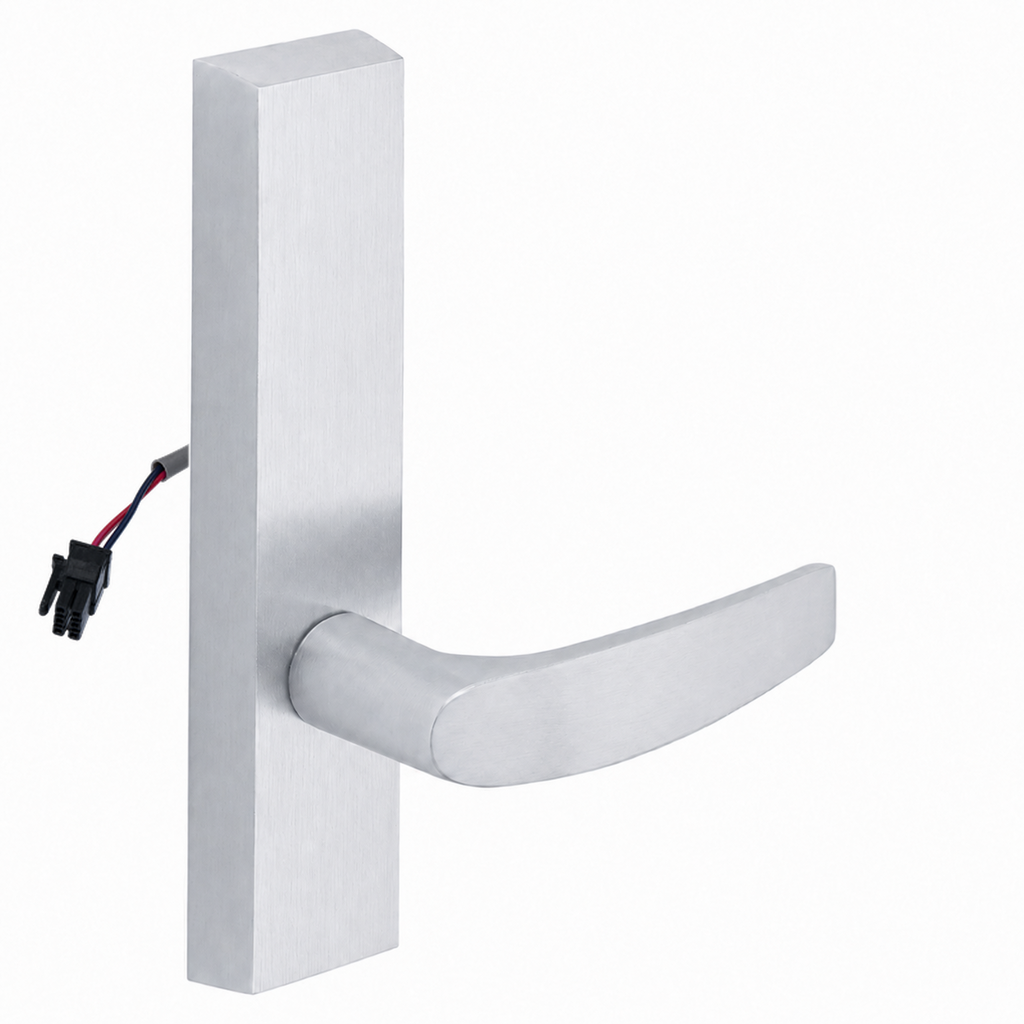

Sargent 773-8-ETB-24V Electrified Lever Trim, "ET" B Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETB-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices where controlled access and dependable egress are required. This trim features the "ET" B lever design and supports Fail Safe/Fail Sec operation for flexible security applications. Rated for 10.2V-26.4V, it is built to integrate with a range of power conditions while maintaining reliable performance. The 773-8-ETB-24V configuration is supplied with no cylinder, making it a practical choice for openings where cylinder dogging or keyed trim is not needed.

Features

• Sargent 773-8-ETB-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim uses the "ET" B lever design.
• Fail Safe/Fail Sec operation provides field-selectable electrified control capability.
• The unit is rated for 10.2V-26.4V operation.
• This configuration is supplied with no cylinder.
• Designed for applications requiring remote control of the trim while maintaining free egress through the exit device.

Functional Details

This electrified trim allows the outside lever to be controlled electrically while the exit device continues to provide safe egress from the inside. The Fail Safe/Fail Sec capability gives added flexibility during installation, allowing the trim function to be matched to the security and life-safety needs of the opening.

• Field selectable for fail safe or fail secure.
• Operates on 12 or 24 volt AC/DC.
• Outside trim is electrically controlled.
• For use with 80 Series narrow stile devices and 80 Series rim and mortise devices.

Included Components

This trim is supplied as a no cylinder configuration. Cylinder components are not included.
