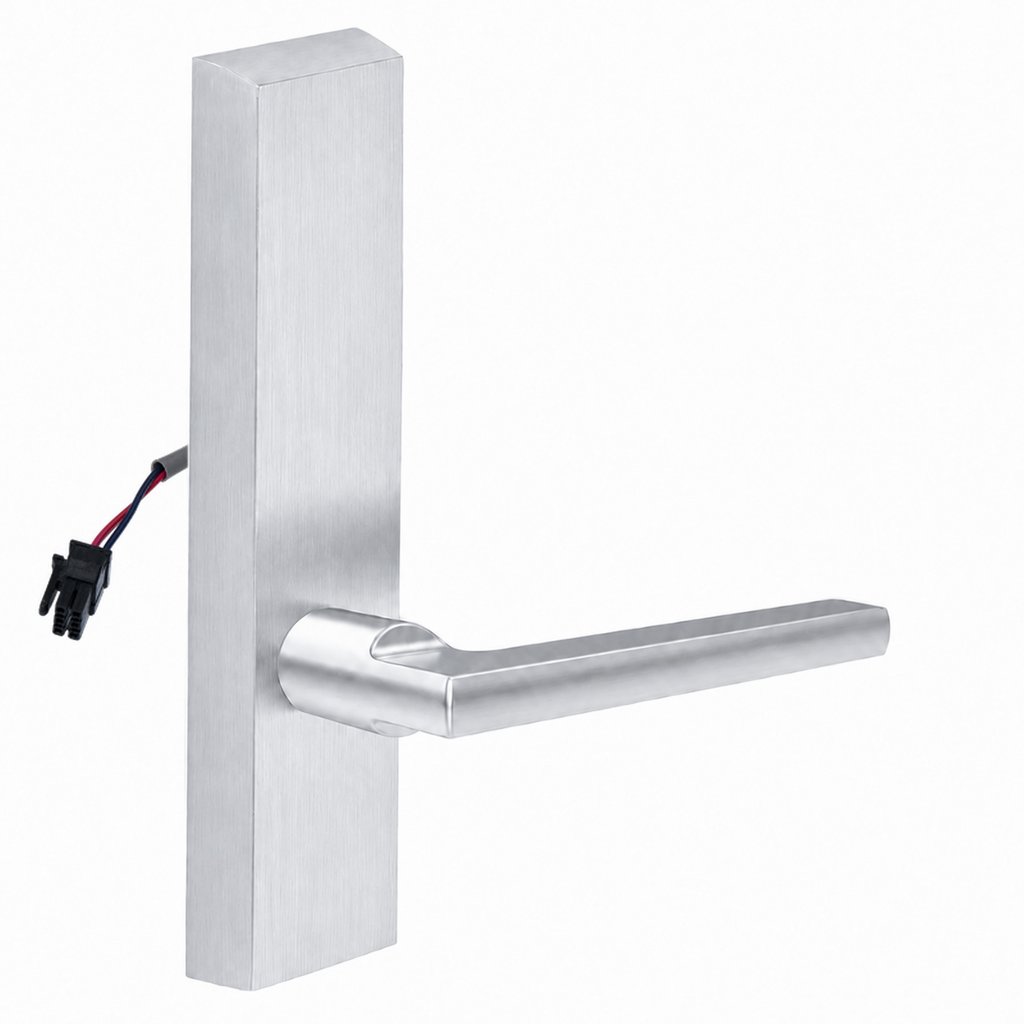

Sargent 773-8-ETMD-12V Electrified Lever Trim, "ET" MD Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETMD-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and features the "ET" MD lever with no cylinder included. This 12V electrified trim supports a 10.2V-26.4V operating range and provides field-selectable fail safe or fail secure operation for flexible access control integration. Built for dependable performance in commercial openings, the 773-8 trim offers a practical solution when controlled entry is needed on compatible Sargent exit devices while maintaining the appearance and function of a lever-operated trim configuration.

Features

• Sargent 773-8-ETMD-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• Includes the "ET" MD lever trim design for lever-operated access on compatible exit devices.
• Supports fail safe or fail secure operation for controlled locking flexibility.
• Operates across a 10.2V-26.4V voltage range for 12V applications.
• Supplied with no cylinder, making it suitable for openings where a cylinder is not required.

Functional Details

This electrified lever trim allows remote control of entry through the outside trim while working with compatible Sargent exit devices. The fail safe or fail secure mode can be selected based on the opening requirements, helping support either unlocked or locked operation during power loss depending on the application.

• Available in fail safe or fail secure
• Solenoid draws 0.24 amps at 12VDC
• Voltage range 10.2VDC to 26.4VDC
• For use with 8800, 8500, 8888 and NB8700 series exit devices

Included Components

This trim is supplied as a Sargent 773-8 electrified lever trim with the "ET" MD lever configuration for compatible exit devices. The unit is provided without a cylinder.
