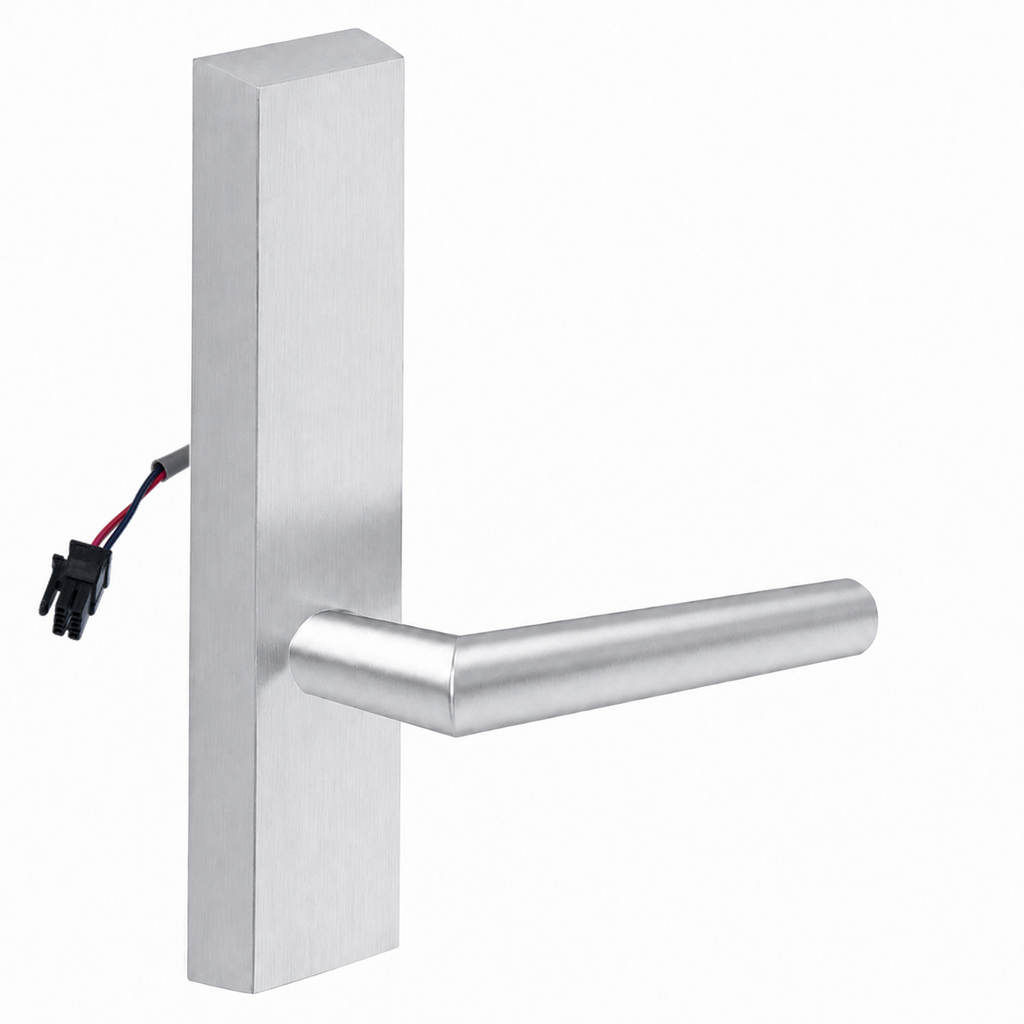

Sargent 773-8-ETMI-24V Electrified Lever Trim, "ET" MI Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETMI-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and features the "ET" MI lever with no cylinder. This electrified lever trim supports fail safe and fail secure operation and is rated for 10.2V-26.4V input. Built for reliable access control integration, the 773-8-ETMI-24V provides remote electrical control of the outside trim while maintaining compatibility with listed Sargent exit device series. It is a practical choice for commercial openings that require controlled entry, dependable trim operation, and flexible electrified performance in a no cylinder configuration.

Features

• Sargent 773-8-ETMI-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• Includes the "ET" MI lever trim design for keyed-free outside operation in a no cylinder configuration.
• Supports both fail safe and fail secure modes for flexible access control applications.
• Operates on 10.2V to 26.4V.
• Provides electrified outside trim control for commercial exit device applications.

Functional Details

This electrified trim allows the outside lever to be controlled by an electrical signal for secured or unlocked entry depending on the selected fail mode. In fail safe mode, the trim unlocks when power is lost, while in fail secure mode, the trim remains locked when power is removed. This makes the 773-8-ETMI-24V suitable for a range of life safety and access control requirements.

• Field selectable for fail safe or fail secure.
• Operates on 12 or 24 volt DC power.
• Input voltage range 10.2V to 26.4V.
• For use with 8500, 8800, 8888 and NB8700 Series exit devices.

Included Components

The trim is supplied as an electrified lever trim assembly for compatible Sargent exit devices and is furnished in a no cylinder configuration.
