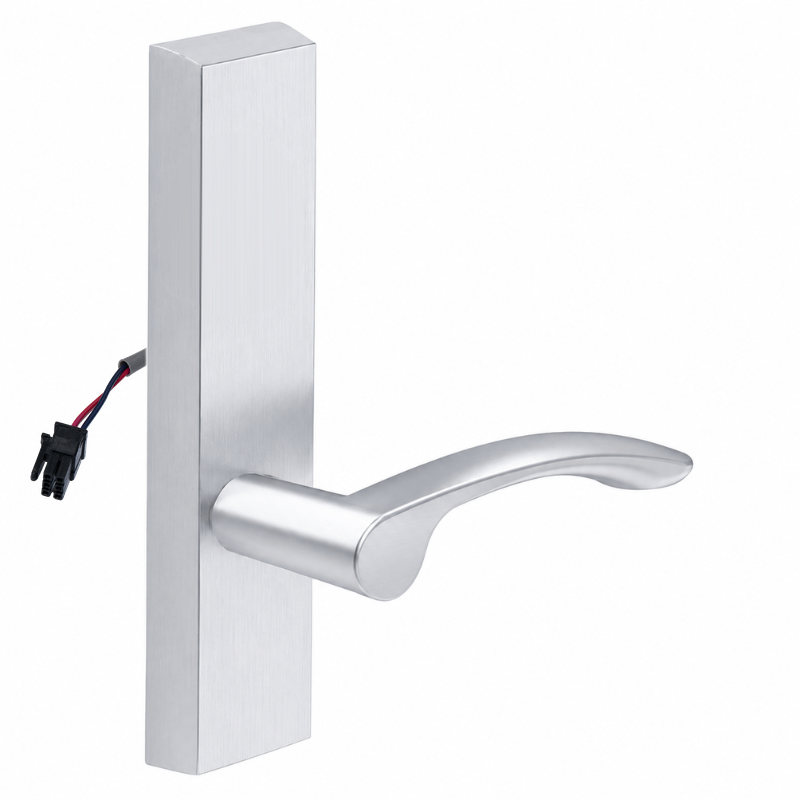

Sargent 773-8-ETMV-12V Electrified Lever Trim, "ET" MV Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETMV-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and provides controlled outside access in a durable, commercial-grade trim package. This model features the "ET" MV lever design, fail safe/fail sec field-selectable operation, and a 10.2V-26.4V operating range for installation flexibility. The 773-8 configuration is built as electrified lever trim for compatible Sargent rim and mortise exit device applications, and this version is supplied with no cylinder, making it suitable for openings where cylinder dogging or keyed trim is not required.

Features

• Sargent 773-8-ETMV-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This trim includes the "ET" MV lever design specified in the title.
• Fail safe/fail sec operation is field selectable for application flexibility.
• The trim operates across a 10.2V-26.4V voltage range.
• This version is supplied with no cylinder.
• Designed for commercial exit device applications requiring electrified outside trim control.

Functional Details

This electrified trim allows the outside lever to be controlled electrically while maintaining free egress from the inside through the exit device. The fail safe/fail sec setup can be selected in the field to match the security and life-safety needs of the opening.

• Field selectable for fail safe or fail secure.
• Operates on 12 or 24 volt DC.
• Solenoid draws current only when energized.

Arm Type Details

This product is electrified lever trim rather than a door closer arm assembly. The "ET" MV lever is the operating trim style used on the exterior side of the compatible exit device.

Included Components

The trim is supplied as a Sargent 773-8 electrified lever trim assembly with the "ET" MV lever configuration for compatible 8800, 8888, 8500, and NB8700 Series exit devices. This version is provided with no cylinder.
