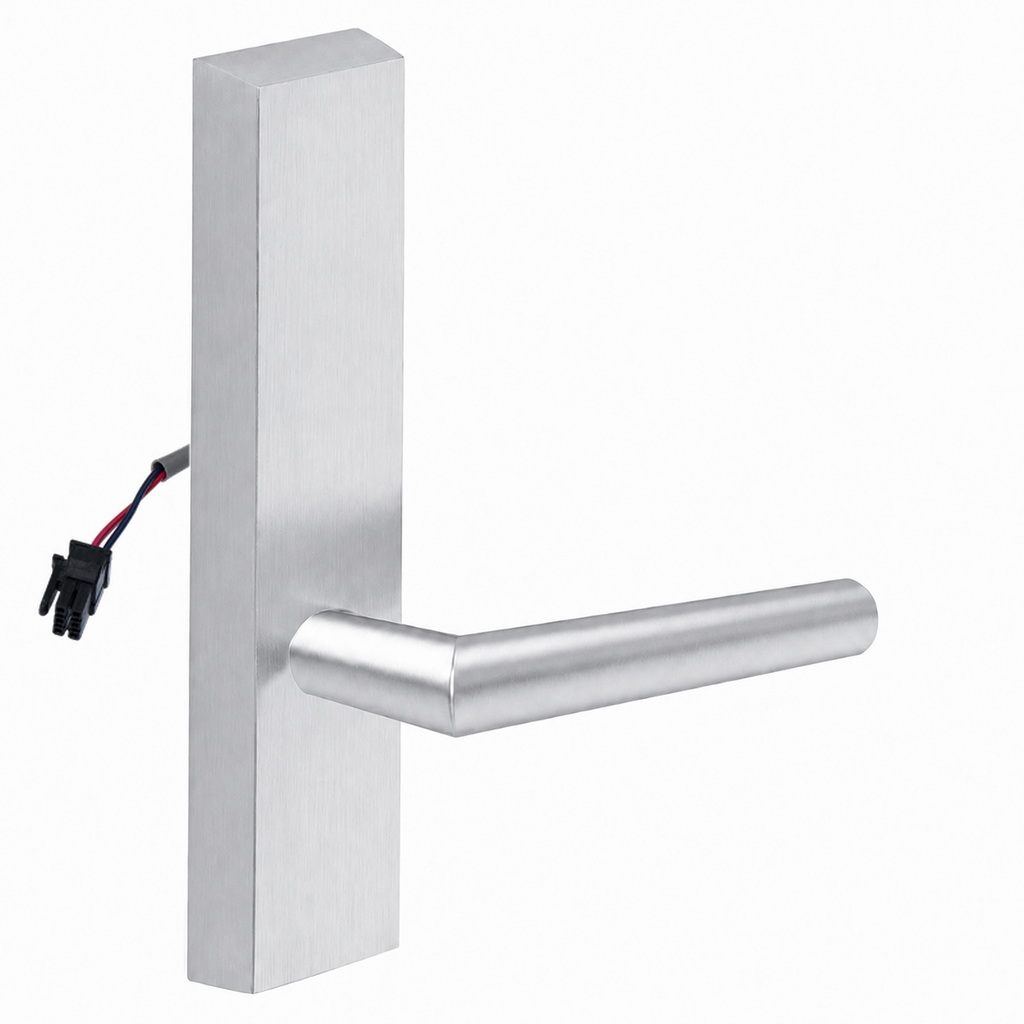

Sargent 774-8-ETMI-24V Electrified Lever Trim, ET MI Lever, Fail Secure, 24V, No Cylinder

The Sargent 774-8-ETMI-24V electrified exit device trim is designed for use with compatible 80 Series exit devices, including 8800, 8888, 8500, and NB8700 Series applications. This ET trim features the MI lever design and a fail secure function, allowing outside lever operation by electrical control while maintaining security when power is removed. Supplied less cylinder, it is a practical choice for controlled entry openings that require dependable trim performance with Sargent rim and mortise exit device configurations. Built for commercial use, this trim supports secure access control integration in a wide range of institutional and commercial door applications.

Features

• Electrified ET lever trim is made for use with compatible Sargent 80 Series exit devices.
• MI lever design provides a clean, durable lever style for commercial door openings.
• Fail secure operation keeps the outside lever locked when power is off.
• 24V configuration supports access control and remote entry applications.
• Supplied without a cylinder for applications using existing or separately ordered keying components.
• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.
• Designed for commercial installations requiring controlled exterior trim operation.

Functional Details

This electrified ET trim uses a fail secure function, which means the outside lever remains locked during a power loss and becomes operable when electrical power is applied. This setup is commonly used on secured openings where entry must be controlled by a card reader, switch, or other access control device while still allowing free egress through the exit device.

• Fail Secure (FS) - Outside lever is locked when power is off.
• 24 Volt operation.
• For use with 80 Series exit devices.

Included Components

This trim is supplied with the electrified outside lever trim only and is furnished less cylinder. The required exit device, cylinder, and related access control components are ordered separately unless otherwise specified for the opening.
