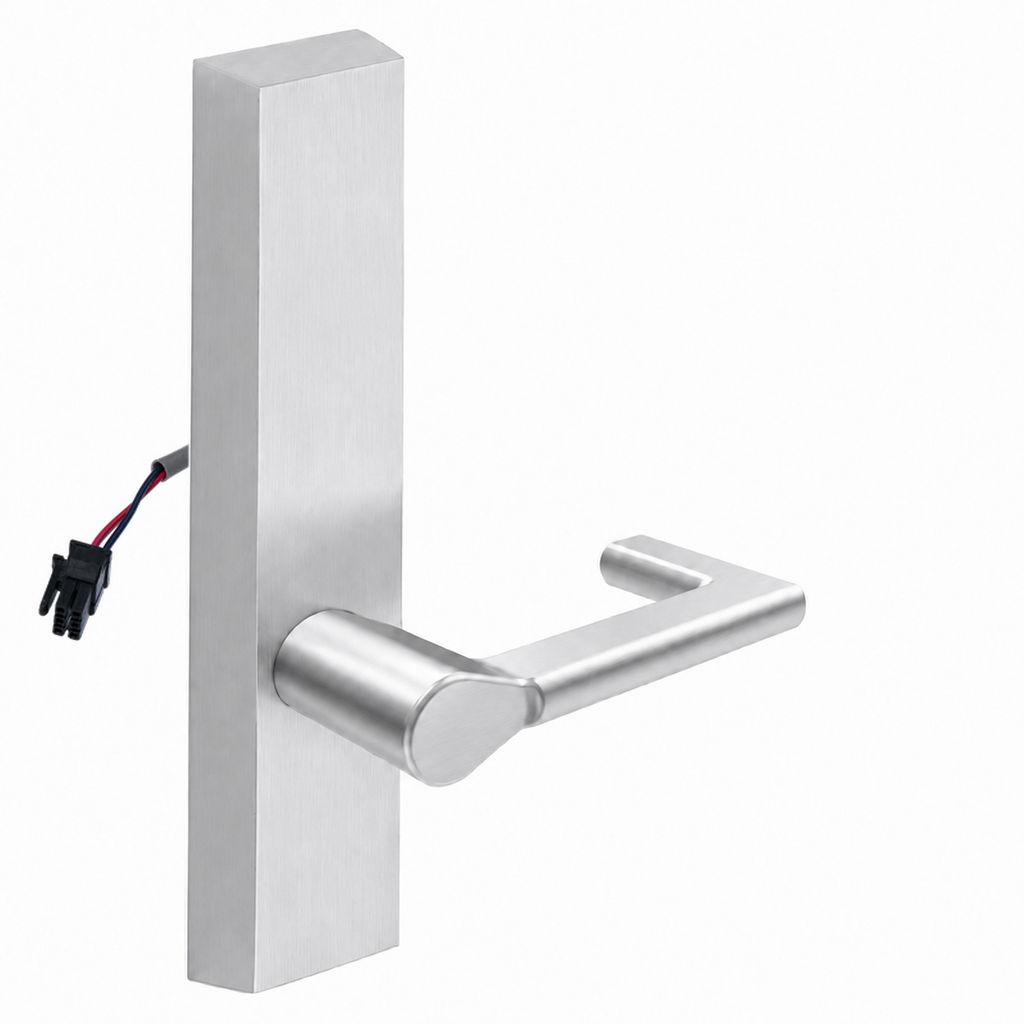

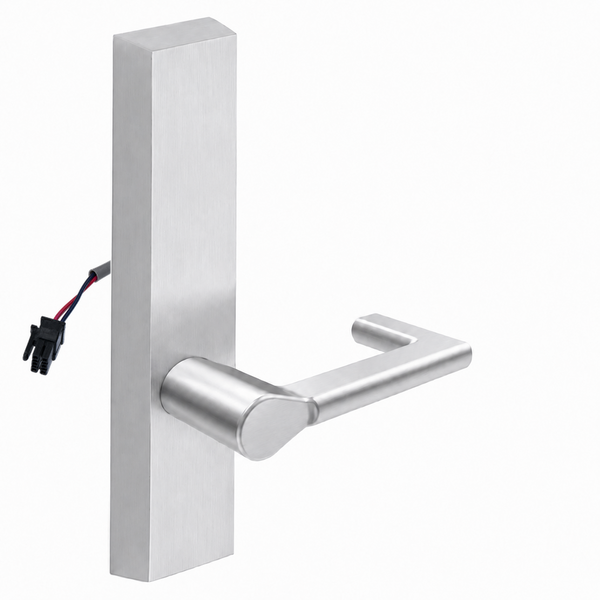

Sargent 774-8-ETND-12V Electrified ET Trim with ND Lever for 80 Series Exit Devices

The Sargent 774-8-ETND-12V electrified exit device trim is designed for controlled entry applications on compatible 80 Series exit devices. This ET trim features the ND lever design, 12V operation, fail secure functionality, and a no-cylinder configuration for installations where key access is not required at the trim. Built for use with Sargent 8800, 8888, 8500, and NB8700 series exit devices, it provides dependable remote locking and unlocking from the outside while maintaining free egress from the inside. It is a practical solution for commercial openings that need secure access control with durable exit device trim performance.

Features

• Electrified ET trim supports controlled outside access for compatible Sargent 80 Series exit devices.
• ND lever design provides a clean, familiar lever style for commercial door applications.
• Fail secure operation keeps the outside trim locked when power is removed.
• 12V configuration is suited for low-voltage access control systems.
• No-cylinder trim setup is ideal for openings that do not require keyed override at the trim.
• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.
• Designed for use in commercial and institutional openings requiring secure access and safe egress.

Functional Details

This electrified trim uses fail secure operation, which means the outside lever remains locked during a power loss while the door can still be opened from the inside through the exit device. In normal use, the trim can be electrically released to allow authorized entry from the exterior, making it well suited for access-controlled openings where security during power interruption is important.

• Fail secure.
• Available in 12V or 24V.
• For use with 80 Series exit devices.

Included Components

This trim is supplied as an electrified ET lever trim in a no-cylinder configuration. Cylinder and related keyed components are not included.
