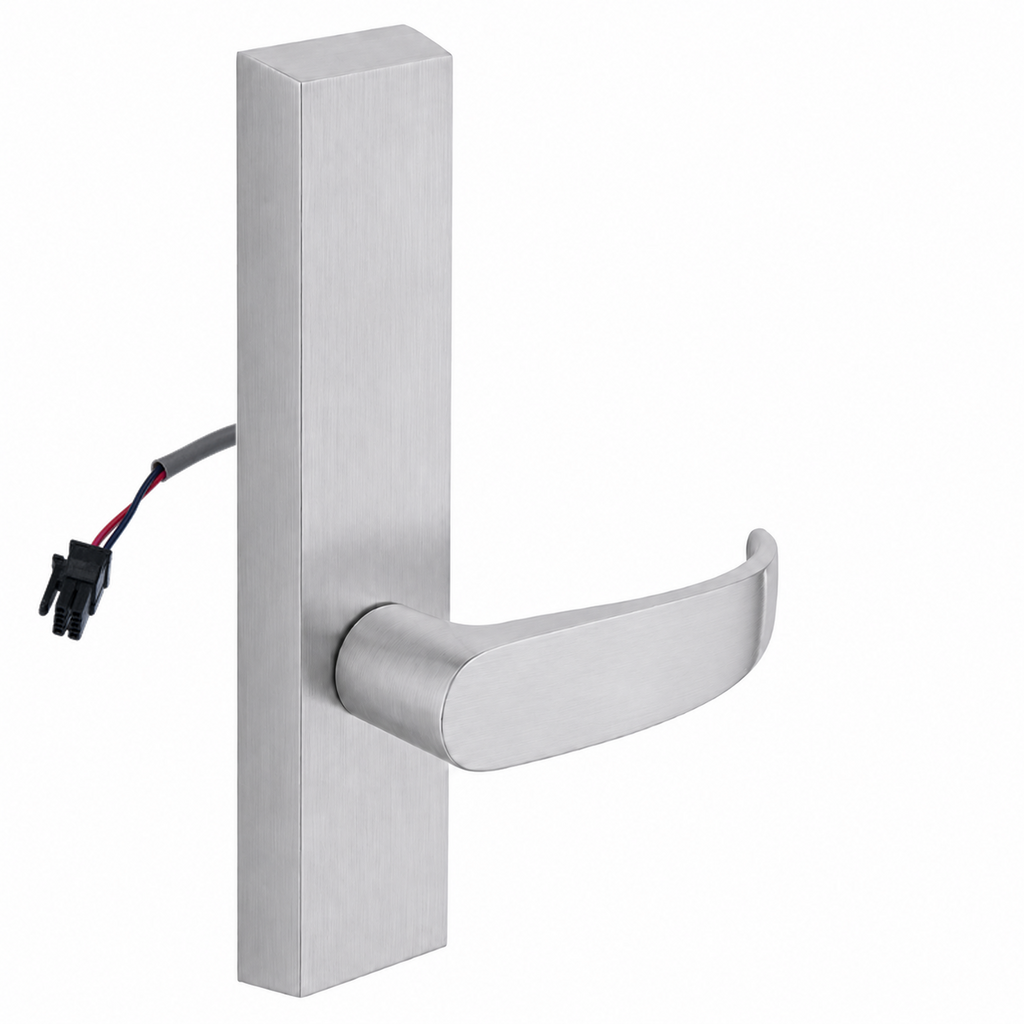

Sargent 774-8-ETP-12V Electrified Lever Trim, ET Trim, P Lever, 12V, Fail Secure, No Cylinder

The Sargent 774-8-ETP-12V electrified exit device trim is a fail secure outside trim designed for use with compatible Sargent 80 Series exit devices. This ET trim features the P lever design and operates on 12V power, making it a practical choice for controlled access openings that require remote unlocking while maintaining secure exterior access when power is removed. It is supplied without a cylinder and is built for integration with 8800, 8888, 8500, and NB8700 Series devices. Ideal for commercial applications, this trim combines dependable electrified operation with the durability and performance expected from Sargent exit hardware.

Features

• Electrified ET outside trim designed for compatible Sargent 80 Series exit devices.
• Configured with a P lever for a familiar and durable lever-operated trim design.
• 12V operation supports access control integration in commercial door openings.
• Fail secure function keeps the outside lever locked when power is removed.
• Supplied without a cylinder for applications using electrified control without keyed outside access.
• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.
• Built for commercial installations requiring secure, code-compliant exit hardware trim.

Functional Details

This fail secure electrified trim keeps the outside lever rigid and locked during normal unpowered conditions. When 12V power is applied through the access control system, the lever is momentarily unlocked to permit authorized entry from the outside while free egress is maintained from the inside through the exit device.

• Fail secure outside trim is rigid at all times. A momentary application of electricity unlocks the lever, permitting entry.
• Used with 80 Series mortise lock and rim exit devices.
• For use with all 80 Series devices except 8888 and 8500F.

Included Components

This trim is supplied as electrified outside lever trim only and is furnished without a cylinder. Power supply, access control components, exit device, and related door hardware are ordered separately.
