Sargent 8875-G-ETB-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

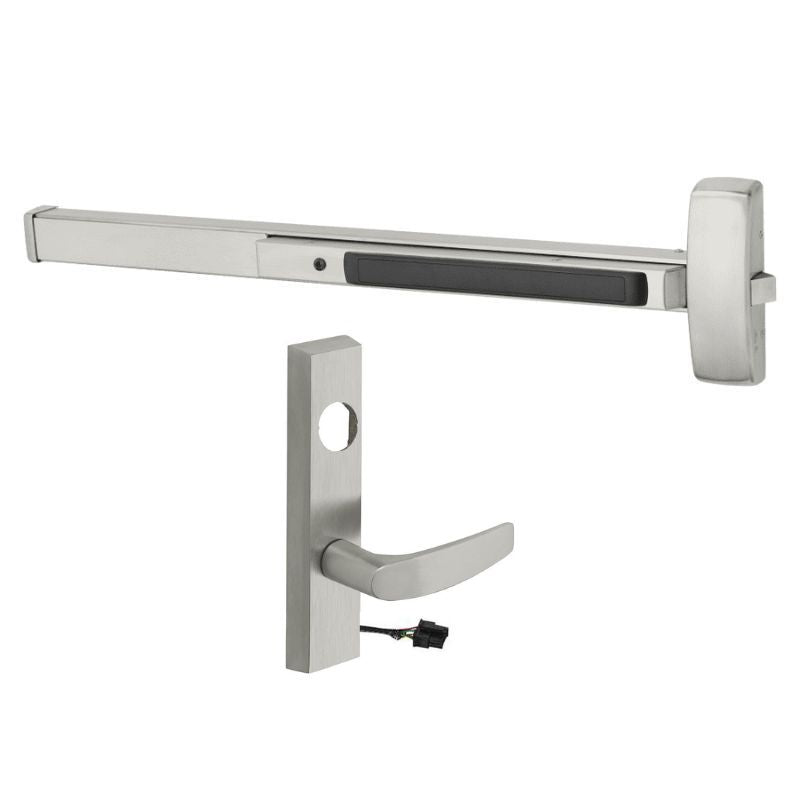

The Sargent 8875-G-ETB-12V is an electrified rim exit device built for wider openings measuring 43 to 48 inches. It pairs reliable panic exit function with the ETB electrified trim and 12-volt operation, giving facility managers remote access control without compromising free egress. Configured as fail safe, the device unlocks the outside lever when power is removed, making it a practical choice for openings that must release during a power loss. A key retracts the latch for mechanical override, and hex key dogging allows the device to be held in a pushpad-depressed state for push-pull operation during high-traffic periods.

Features

• Electrified rim exit device sized for doors 43 to 48 inches wide.
• Fail safe operation unlocks the outside lever when power is removed.
• 12-volt electrified ETB trim for integration with access control systems.
• Key retracts latch to provide mechanical override and entry.
• Hex key dogging holds the latch retracted for push-pull use.
• Grade 1 rated for durable performance in commercial applications.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

As a fail safe electrified device, the 8875-G-ETB-12V keeps the outside lever locked while energized and automatically unlocks the lever when power is interrupted, allowing entry during a power failure. The exit function remains free at all times for safe egress.

• Fail safe: power off unlocks lever.
• Key retracts latch for outside access.
• Hex key dogging for push-pull operation.

Included Components

The device ships with the ETB electrified lever trim, mounting hardware, and the rim exit chassis configured for the specified door width range.
