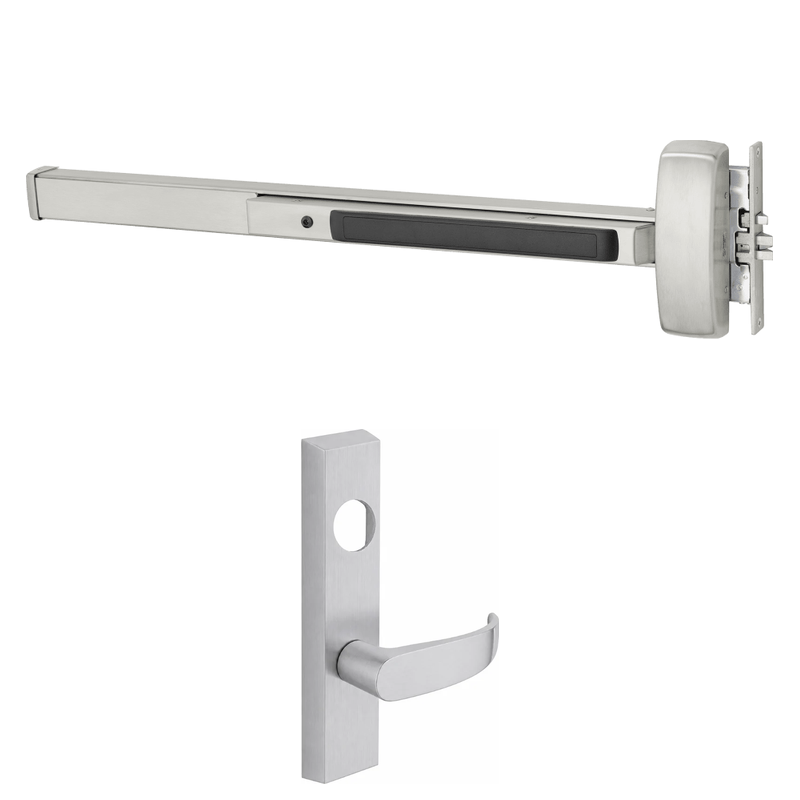

Sargent LC-12-8904-G-ETP Fire Rated Mortise Exit Device, Night Latch, For 43-48" Dr Widths, Less Cylinder

The Sargent LC-12-8904-G-ETP is a fire-rated mortise exit device built for high-traffic commercial and institutional openings. Designed for door widths ranging from 43 to 48 inches, it combines the security of a mortise lock body with the reliable panic egress of a Sargent 8900 Series device. This configuration features the ETP escutcheon trim with night latch function, allowing key-operated entry while maintaining free egress from the inside at all times. Supplied less cylinder (LC), it accepts your preferred mortise cylinder for keying flexibility. With UL fire-rated construction, it meets the demands of fire-door assemblies where life safety and durability are essential.

Features

• Fire-rated mortise exit device suitable for labeled fire door assemblies.
• Night latch (NL) function allows key access from the outside while permitting free egress.
• Sized for wide door applications covering 43" to 48" openings.
• ETP escutcheon trim (G trim design) provides a clean, durable exterior finish.
• Supplied less cylinder for compatibility with existing keying systems.
• Heavy-duty mortise lock body for superior strength and long-term reliability.

Functional Details

The night latch function provides keyed entry from the exterior through the ETP trim, while the interior push bar always allows immediate, unobstructed egress. When the device is latched, authorized users unlock the outside trim with a mortise cylinder to gain entry.

• Night Latch: Key retracts latchbolt for entrance.
• No outside operation without key.
• Free egress at all times from the inside.

Arm Type Details

The 8904 features a mortise lock case mechanism. Depressing the push rail retracts the mortise latchbolt, providing secure dead-latching when closed and reliable panic release for safe exit under all conditions.

Included Components

The device ships with the 8900 Series mortise exit chassis, ETP (G) escutcheon trim, and standard mounting hardware. A mortise cylinder is not included and must be ordered separately.
