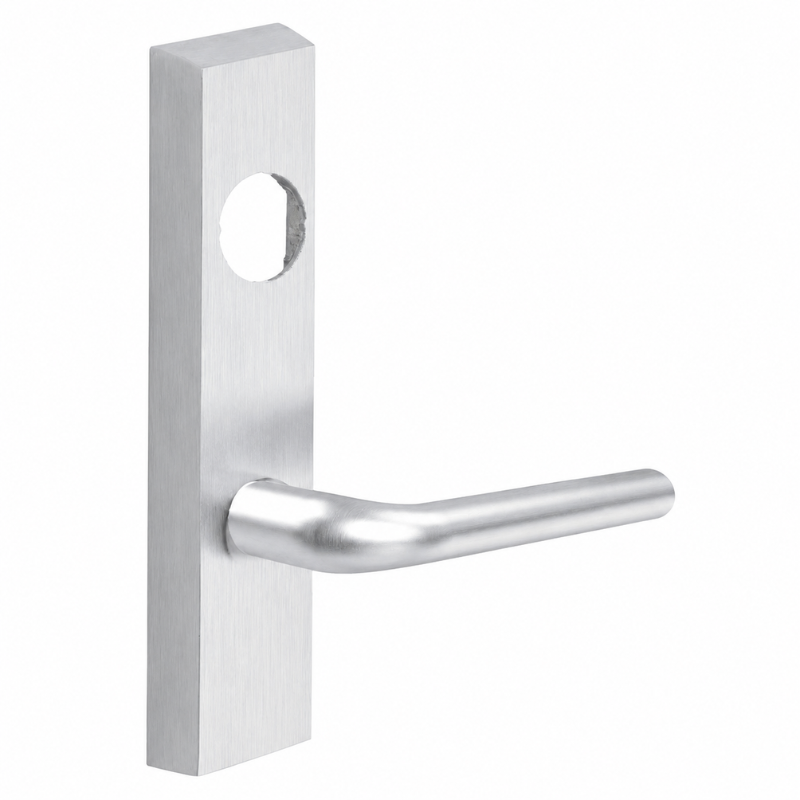

The Sargent 704-ETME Exit Device Trim comes less cylinder with a Night Latch, Key Retracts Latch Function, works for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, 9900 Series Devices, 1-3/4" Mortise Cylinder for Mortise Devices, ET Controls, MG Lever Design.

The Sargent 704-ETME Exit Device Trim comes less cylinder and is designed with a Night Latch, Key Retracts Latch function for secure, controlled access on compatible exit devices. This trim works for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, and 9900 Series Devices, making it a practical choice for retrofit or replacement applications. It is configured for a 1-3/4" mortise cylinder for mortise devices, includes ET controls, and features the MG lever design. Built for use with Sargent exit device applications, the 704-ETME trim provides dependable operation and compatibility across multiple series.

Features

• Sargent 704-ETME exit device trim is supplied less cylinder for applications where the cylinder is provided separately.
• This trim includes a Night Latch, Key Retracts Latch function for controlled entry from the trim side.
• Compatible with Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, and 9900 Series Devices.
• Designed for use with a 1-3/4" mortise cylinder for mortise devices.
• Configured with ET controls for the specified trim function.
• Features the MG lever design.

Functional Details

The Night Latch, Key Retracts Latch function keeps the outside trim rigid during normal operation, and entry is gained by key operation to retract the latch. This function is commonly used where exterior access should remain locked while still allowing safe egress from the inside through the exit device.

• Night Latch - NL trim is rigid at all times. Entry by key only retracts latch bolt.
• ET control allows cylinder to be removed only when key is in locked position.

Arm Type Details

This product is exit device trim rather than a door closer arm assembly, so no closer arm configuration applies. The trim is intended to operate with compatible Sargent rim and mortise exit devices and is identified by its ET control configuration and MG lever design.

Included Components

The trim is supplied less cylinder. For mortise device applications, it is designed to accept a 1-3/4" mortise cylinder as specified in the title and cut sheet.
