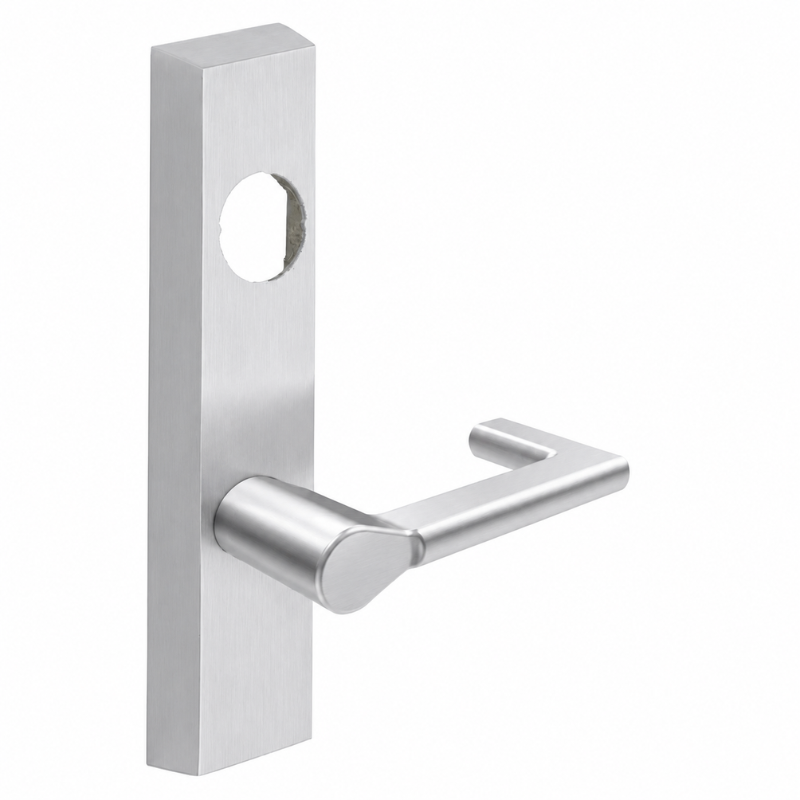

The Sargent 704-ETND Exit Device Trim comes less cylinder with a Night Latch, Key Retracts Latch Function, works for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, 9900 Series Devices, 1-3/4" Mortise Cylinder for Mortise Devices, ET Controls, ND Lever Design.

The Sargent 704-ETND Exit Device Trim comes less cylinder with a Night Latch, Key Retracts Latch Function and is designed to work with Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, and 9900 Series Devices. This trim uses ET controls and features the ND lever design for a clean, durable operating style. For mortise devices, it is prepped for a 1-3/4" mortise cylinder, making it a practical choice for keyed access on compatible exit device applications. Built for commercial openings, the 704-ETND trim provides dependable exterior control while supporting secure egress on the interior side.

Features

• Sargent 704-ETND exit device trim is furnished less cylinder for applications where the cylinder is supplied separately.
• This trim includes a night latch, key retracts latch function for controlled exterior access.
• Compatible with Sargent rim and mortise 8300, 8500, 8800, 8900, 9800, and 9900 series devices.
• Designed for ET controls configuration.
• Features the ND lever design.
• For mortise device applications, it is designed to accept a 1-3/4" mortise cylinder.

Functional Details

The night latch, key retracts latch function allows the outside trim to remain rigid until authorized entry is needed. When the proper key is used, the latch retracts for access from the exterior side, while the exit device continues to provide free egress from the inside.

• Night latch/key retracts latch.
• Outside lever rigid.
• Key retracts latchbolt.

Included Components

This Sargent 704-ETND exit device trim is supplied less cylinder. For mortise device applications, a 1-3/4" mortise cylinder is required and supplied separately.
