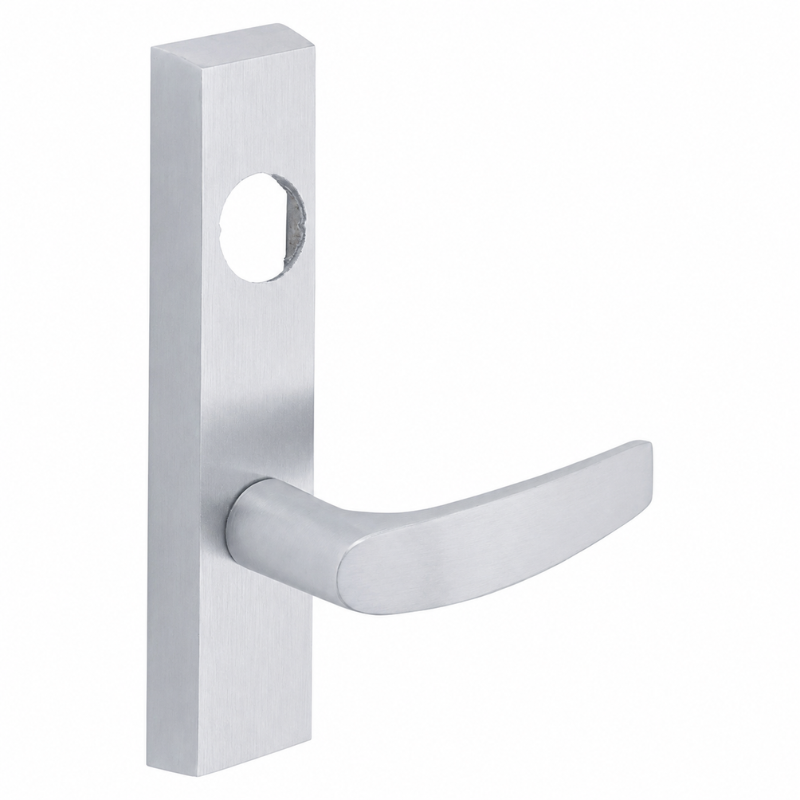

Sargent LC-706-8-ETB Exit Device Trim, Storeroom Function, ET Control L Lever, Key Unlocks Trim, Trim Retracts Latch/Trim Relocks when Key is Removed, 8700, 8800, 8888 & 8500 Series Exit Devices, Less Cylinder

The Sargent LC-706-8-ETB exit device trim is designed for storeroom function applications where controlled exterior access is required. This trim features the ET control L lever and operates so the key unlocks trim, the trim retracts latch, and the trim relocks when the key is removed. Built for use with Sargent 8700, 8800, 8888, and 8500 series exit devices, this configuration provides dependable access control for commercial openings. Supplied less cylinder, the LC-706-8-ETB allows you to match existing keying systems while maintaining compatibility with the specified Sargent exit device series.

Features

• Sargent LC-706-8-ETB exit device trim is configured for storeroom function applications.
• Includes the ET control L lever trim design for compatible Sargent exit devices.
• Key unlocks trim for controlled entry from the exterior side.
• Trim retracts latch during authorized operation.
• Trim relocks when key is removed to restore security automatically.
• Designed for use with 8700, 8800, 8888, and 8500 series exit devices.
• Supplied less cylinder to support field-selected cylinder and keying requirements.

Functional Details

This storeroom function trim keeps the outside lever secured until an authorized key is used. When the key is turned, the trim is unlocked so the lever can retract the latch for entry. Once the key is removed, the trim relocks automatically, helping maintain security without requiring manual reset.

• Entrance by trim when actuating bar is depressed, key unlocks trim.
• Key removable only when locked.

Included Components

This Sargent LC-706-8-ETB exit device trim is supplied less cylinder and is intended for installation with compatible 8700, 8800, 8888, and 8500 series exit devices.
