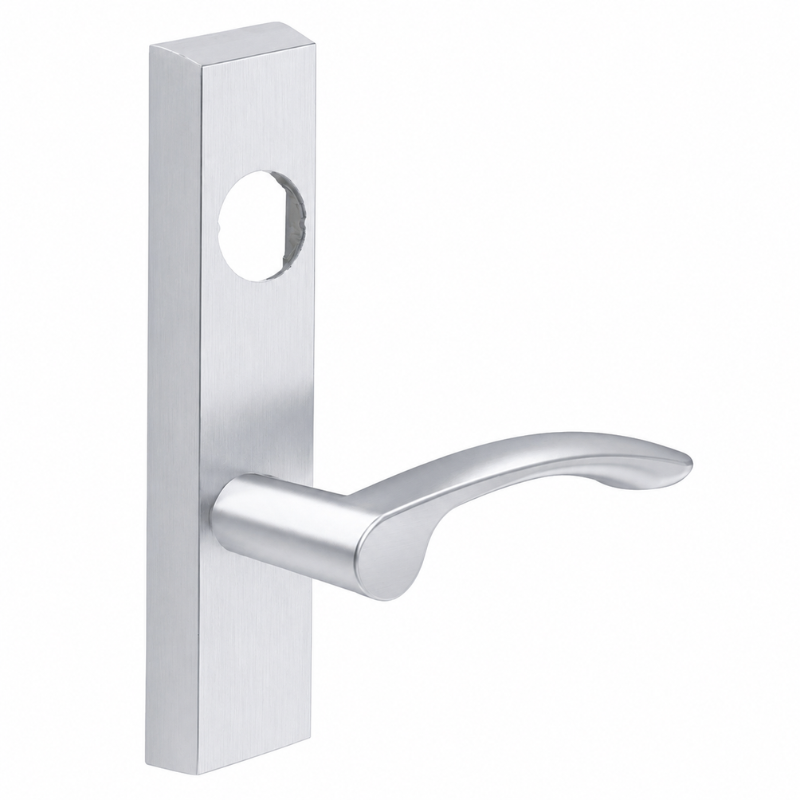

Sargent LC-713-8-ETMV, Exit Device Lever Trim MV Lever, Classroom Function, Key Outside Locks-Unlocks Outside Trim, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-713-8-ETMV exit device lever trim with MV lever is designed for classroom function applications where keyed control of the outside trim is required. This trim is made for use with Sargent 8800, 8888, 8500, and NB8700 series exit devices, providing a secure and practical solution for commercial openings. In this classroom function configuration, the key outside locks or unlocks the outside trim as needed, while the unit is supplied less cylinder so you can match existing keying systems. The LC-713-8-ETMV combines dependable operation with compatibility across multiple Sargent exit device series.

Features

• Sargent LC-713-8-ETMV exit device lever trim is built with an MV lever design for use on compatible exit devices.
• Classroom function allows the key outside to lock or unlock the outside trim.
• Designed for use with 8800, 8888, 8500, and NB8700 series exit devices.
• Supplied less cylinder for compatibility with existing cylinder keying requirements.
• Listed for UL-cUL labeled fire doors.
• ANSI/BHMA A156.3 Grade 1 certified trim construction supports heavy-duty commercial use.
• Non-handed design allows flexible installation.

Functional Details

This classroom function trim allows authorized users to control exterior access with a key. The outside lever trim can be locked or unlocked from the exterior side, making it well suited for school, institutional, and commercial openings where controlled entry is needed while maintaining safe egress through the paired exit device.

• Classroom function
• Key outside locks-unlocks outside trim
• Non-handed
• UL-cUL listed for labeled fire doors

Included Components

This trim is supplied less cylinder. A compatible cylinder must be ordered separately when keyed operation is required.
