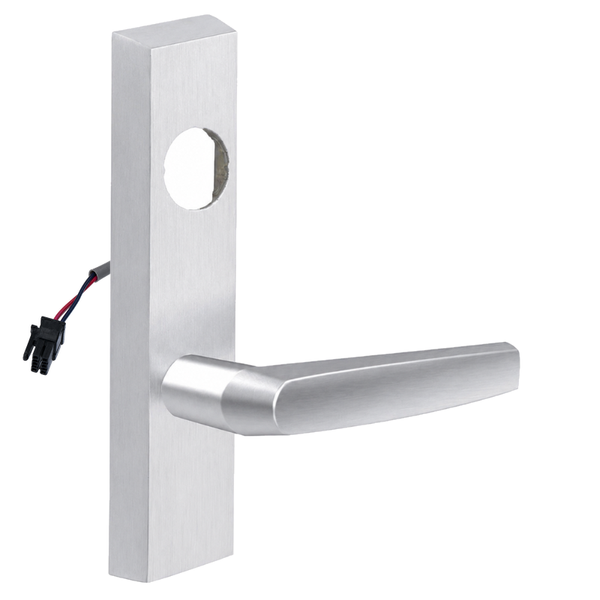

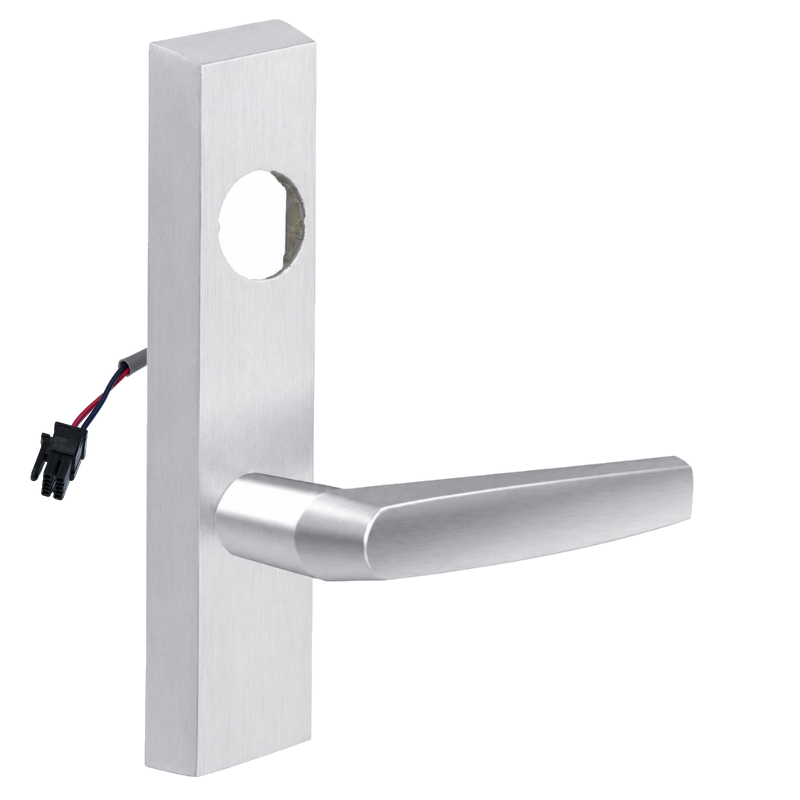

Sargent LC-775-8-ETMJ-12V Electrified Lever Trim, "ET" MJ Lever, Key Retracts Latch, Fail Safe, 12V, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-775-8-ETND-12V electrified lever trim is designed for use with compatible 80 Series exit devices and provides controlled outside access in a durable, commercial-grade configuration. This ET trim features the ND lever design, 12V operation, and fail safe functionality that unlocks the lever when power is removed. The key retracts the latch for mechanical entry, making it a practical choice for openings that require both electrical access control and keyed override. Built for demanding institutional and commercial applications, this trim is well suited for installations where reliable operation and integration with exit devices are essential.

Features

• Electrified ET lever trim designed for compatible Sargent 80 Series exit devices.

• ND lever design offers a clean, commercial appearance.

• 12V configuration supports low-voltage access control applications.

• Fail safe operation unlocks the lever when power is off.

• Key retracts latch for mechanical override and authorized entry.

• Less cylinder configuration allows cylinder to be supplied separately.

• Suitable for use on 8800, 8888, 8500, and NB8700 Series exit devices.

• Built for commercial and institutional door openings requiring electrified trim.

Functional Details

This electrified trim uses fail safe operation, meaning the outside lever remains unlocked when power is interrupted. In normal use, the trim works with the exit device to provide controlled entry from the outside while maintaining free egress from the inside. The keyed function allows the latch to be retracted mechanically for authorized access.

• Fail safe - power off, unlocks lever.

• Key retracts latch.

• For use with 80 Series exit devices.

Included Components

This trim is supplied less cylinder. The cylinder must be ordered separately to complete the keyed function.
