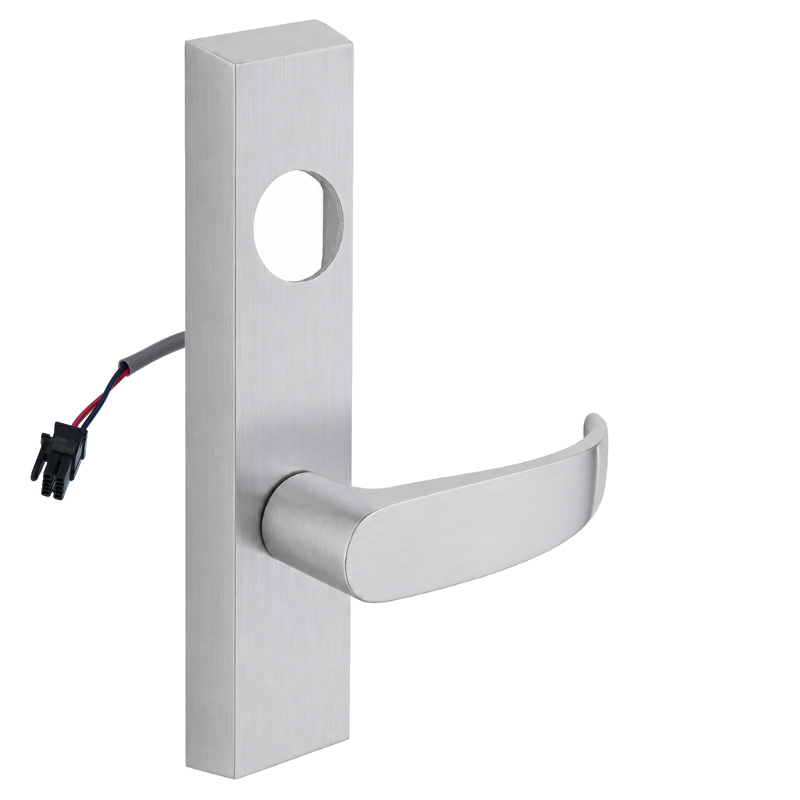

Sargent LC-775-8-ETP-12V Electrified Lever Trim, "ET" P Lever, Key Retracts Latch, Fail Safe, 24V, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-775-8-ETP-24V electrified lever trim is designed for use with Sargent 80 Series exit devices and provides controlled outside access on rim and mortise applications. This fail safe trim unlocks the lever when power is off, while the key retracts the latch for mechanical override when needed. It is furnished with the ET escutcheon and P lever design, making it a practical choice for commercial openings that require remote access control integration. Built for compatibility with select 8800, 8888, 8500, and NB8700 Series devices, this trim is supplied less cylinder and is intended for 24V operation.

Features

• Electrified lever trim for use with Sargent 80 Series exit devices.

• Fail safe operation unlocks the lever when power is removed.

• Key retracts latch for mechanical access override.

• Configured with ET trim and P lever design.

• Designed for rim and mortise exit device applications.

• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.

• Operates on 24V power.

• Supplied less cylinder.

Functional Details

This electrified trim allows the outside lever to be controlled through the building’s access control system. In fail safe mode, the lever remains unlocked when power is interrupted, allowing free operation from the trim side. A keyed cylinder can still mechanically retract the latch, providing an added method of entry when authorized access is required.

• Fail safe – power off unlocks lever

• Key retracts latch

• For rim and mortise devices

Included Components

This trim is furnished with the ET escutcheon and P lever configuration. Cylinder is not included.
