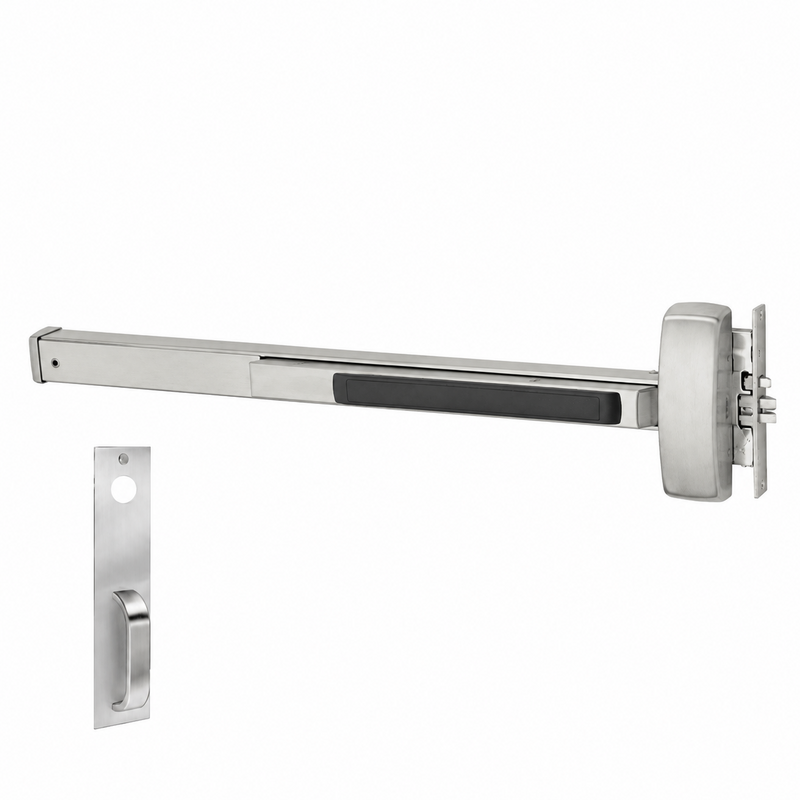

Sargent LC-8904-J-PTB Mortise Exit Device, Nightlatch Function, PTB Thumbpiece Trim, 37-42 In Door, Less Cylinder, Hex Key Dogging, Grade 1

The Sargent LC-8904-J-PTB is a Grade 1 mortise exit device for 37 to 42-inch door widths, supplied with PTB thumbpiece pull trim and less cylinder. This non-fire-rated panic hardware configuration includes hex key dogging. The J code identifies the rail size, not the trim style.

Features

• 8900 Series mortise lock exit device with function 04 nightlatch operation.
• Key retracts the latch for outside entry; pressing the inside pushbar retracts the latch for egress.
• PTB thumbpiece pull trim; specify LHR or RHR handing.
• Hex key dogging holds the pushbar depressed for push/pull operation.
• Supplied less cylinder; cylinder must be ordered separately.
• ANSI/BHMA A156.3 Grade 1.

Functional Details

Function 04 is a nightlatch function: the key retracts the latch. This is not a passage or classroom function, and the key does not leave the exterior thumbpiece unlocked for ongoing operation. Egress from inside is by the pushbar. LC means less cylinder.

Included Components

Mortise exit device, PTB trim, standard C908 strike and mounting fasteners. Cylinder is not included.
