Description

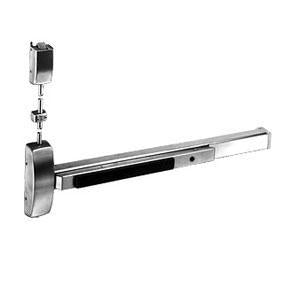

The Sargent NB-8710-96-G is a less bottom surface vertical rod exit device with no Outside Operation Exit Only. It is for a 96" door height, single-point top latching, for a 43"-48" door width, rail (G rail 48" length can be cut to 43") and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.
• Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Exit Only |
| Device Length | 48" |
| Hand | Optional |
| Mechanical Options | Less Bottom Rod |
| Top Strike | 646 |
| Includes Trim | No |
| Minimum Stile Size | 4 1/2" with Trim, 3 1/2" without Trim |
| Door Material | Metal or Wood |
| Door Width | 43" - 48" |
| Door Height | 96" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | No |
| Product Type | Surface Vertical Rod Exit Devices |
