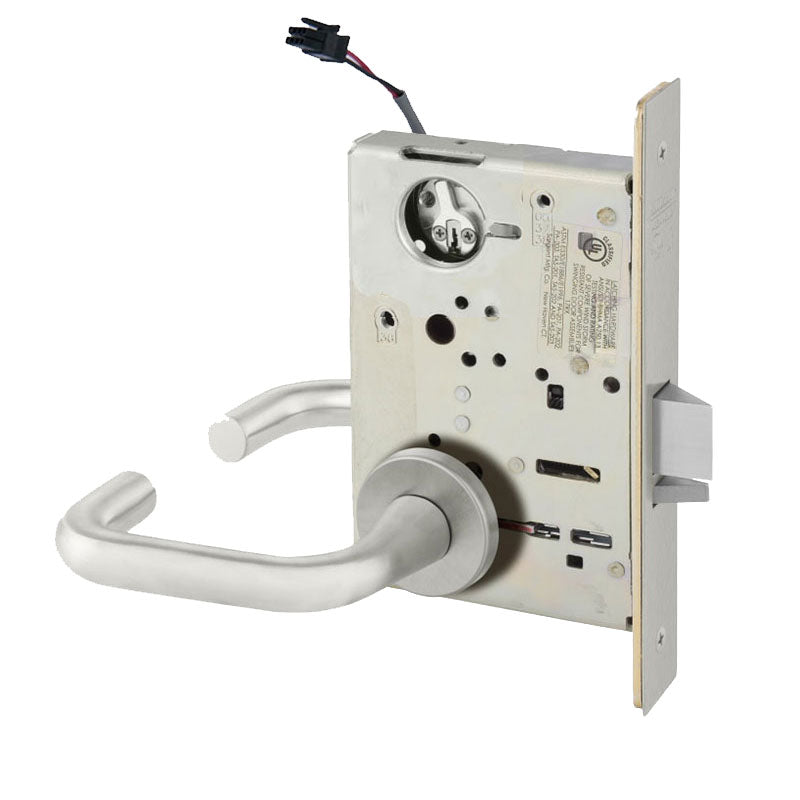

Sargent RX-LC-8273-24V LNJ 32D Fail Secure 24V Electrified Mortise Lock, LN Rose, J Lever, Less Cylinder, RX Switch, Satin Stainless Steel

  • SKU: RXLC827324VLNB32D

Sargent RX-LC-8273-24V LNJ 32D Fail Secure 24V Electrified Mortise Lock, LN Rose, J Lever, Less Cylinder, RX Switch, Satin Stainless Steel

  • SKU: RXLC827324VLNB32D
Sale price$873.37/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Visa Mastercard American Express Discover Shop Pay Apple Pay

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent RX-LC-8273-24V LNJ 32D Fail S...
Quantity
+
Sale price$873.37
Sargent Mortise Cylinders - Multiple ...
Quantity
+
Sale priceFrom $94.50
Sargent 351-UO-TB Powerglide Surface ...
Quantity
+
Sale priceFrom $373.39
Total

The Sargent RX-LC-82737-24V-LNJ Fail Secure Mortise Lock, has a J - Lever, an LN - Rose, includes an RX (Request to Exit) Switch, is 24 VDC, is Field Reversible, comes Less Cylinder, with an ASA Strike, and is Grade 1 Heavy Duty. Fail Secure is Power Off locks Lever Function.

Sargent 8200 Series Overview

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.

RX- option — Request-to-Exit or Enter Signaling Switch

  • Two switches mounted internally in lock body that provide independent monitoring of inside and outside lever rotation
  • Available in all functions with non-rigid levers
  • Not available for the following options: 1-, 3-, 74
  • Not available for the following trims: LS or FE

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements
  • UL-cUL listed for 3-hour fire doors and windstorm applications
  • Thru-bolted lever trim and strengthened cylinder retainer
  • Available with security key systems (Degree, Signature, KESO, and XC)
  • Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim), and monitoring
  • 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
  • Available with behavioral health trim
  • 10-year warranty
  • Patented design and construction
Manufacturer Sargent
SKU RX LC 8237 LNJ 24V
Grade Grade 1
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}


Function 73 Electrical Fail Secure
Lever/Knob Design J - Lever
Rose/Escutcheon Design LN Rose (2" Diameter)
Cylinder Type Less Cylinder
Hand Field Reversible
Door Thickness 1 3/4"
Bolt Projection 3/4"
Strike Number 82-0110
Strike Type ASA
Strike Height 4 7/8"
Strike Width 1 1/4"
Screws Combination
Power Hard Wired
Operating Voltage 12VDC/24VDC
Amp Draw 500mA Peak, 15mA Holding
Product Type Electric Mortise Lock

Cylinder Mortise Handing Chart
