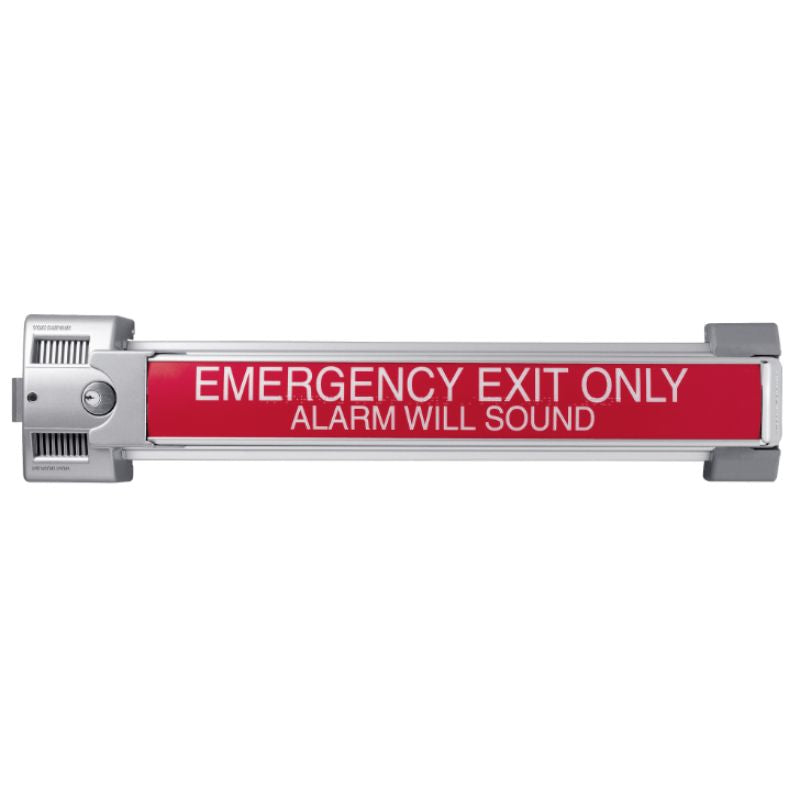

Von Duprin 2670 GUARD-X Exit Alarm Device, Exit Only, Less Cylinder

  • SKU: 2670628
Von Duprin 2670 GUARD-X Exit Alarm Device, Exit Only, Less Cylinder
Von Duprin 2670 GUARD-X Exit Alarm Device, Exit Only, Less Cylinder
Von Duprin 2670 GUARD-X Exit Alarm Device, Exit Only, Less Cylinder
Von Duprin 2670 GUARD-X Exit Alarm Device, Exit Only, Less Cylinder
All VON DUPRIN Products

Von Duprin 2670 GUARD-X Exit Alarm Device, Exit Only, Less Cylinder

  • SKU: 2670628
$743.94/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Finish: US28-628 Satin Aluminum

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin 2670 GUARD-X Exit Alarm De...
Quantity
–
+
$743.94
Schlage Rim Cylinders - Multiple Keyw...
Quantity
–
+
From $92.61
Total

Von Duprin 2670 GUARD-X Exit Alarm Lock Device, Exit Only, For 3-4ft doors

The Von Duprin 2670 GUARD-X Exit Alarm Device offers secure and code-compliant protection for secondary emergency exits. With a large stainless steel deadbolt and resilient latch case, it deters theft and unauthorized use in restaurants and retail establishments, providing peace of mind and safeguarding against potential losses.

GUARD-X Features and benefits

  • UL listed for panic exit hardware (UL305)
  • Tested in accordance to ANSI A156.3 Grade 1 panic hardware (250,000 cycles)
  • Quick installation with an easy-to-use adhesive back template
  • Non-handed design allows installer to mount for either hand by just removing and reversing the “Emergency Exit - Alarm Will Sound” sign built into the device
  • Three finishes available: SP28, 313, 315
  • Heavy duty construction with stainless steel deadbolt with cast aluminum latch case
  • Only authorized person with a key can re-latch or reset the alarm after unauthorized exit
  • 100-decibel alarm
  • Armed and disarmed by key
  • Alarm is powered by standard 9V battery or hardwired using optional PT790 power supply
Manufacturer Von Duprin
SKU 2670
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Aluminum
UL Listing Type ANSI A156.3 Grade 1, UL Listed
Limited Warranty 3 Years
Physical Appearance Wide Stile Pushpad
Device Type Impacted
Device Length 32-1/2"
Hand Non-Handed
Door Width 36" - 48"
Fire Rated No
Product Type Exit Device Parts
Touchbar height to finished floor 40" (1016mm) at center
Door width range 36" to 48" (914mm to 1219mm)
Touchbar projection
Neutral
Depressed



4 1⁄8" (103mm)
2 3⁄4" (70mm)
Minimum stile requirement
Single door
Double door



5 7⁄8"
6 1⁄4"

Product Cut Sheet

Panic Handing Chart
