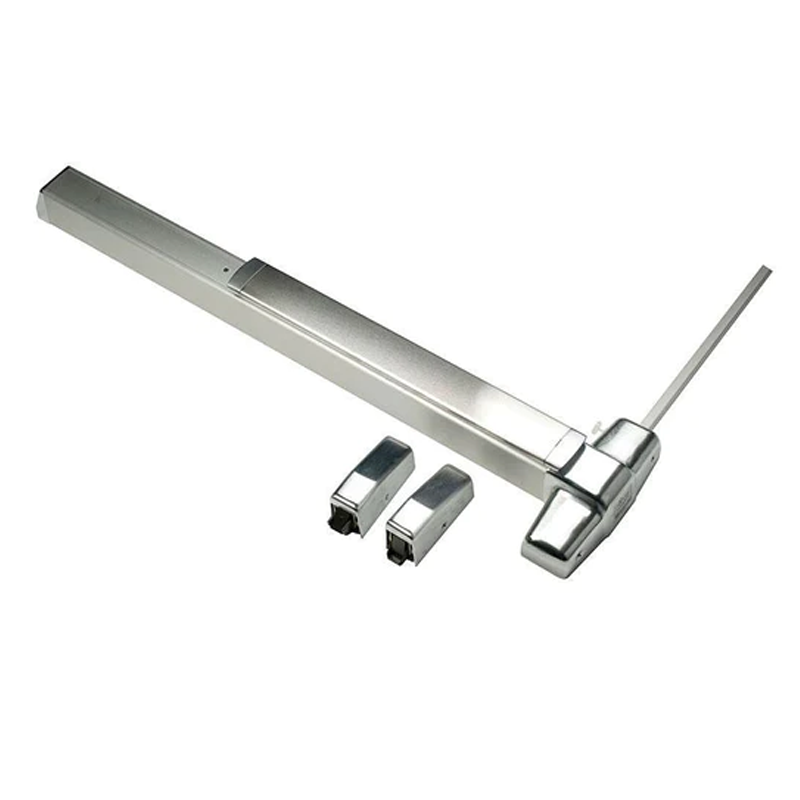

Von Duprin 9827EO 3 26D LBR Surface Vertical Rod Exit Device, Exit Only, 36 In., Less Bottom Rod, US26D/626 Satin Chrome Finish
The Von Duprin 9827EO 3 26D LBR is a Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Hex Key Dogging, Satin Chrome Finish, Field Reversible
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch). Vertical rods and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Finishes _ US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D are available with 98 Series only.
