Description

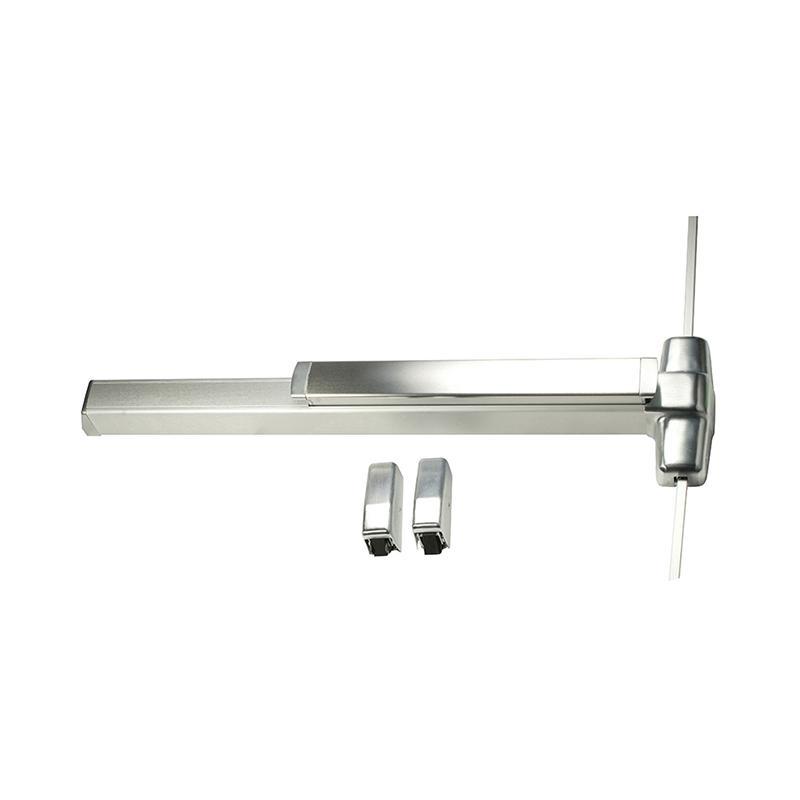

Von Duprin 9827EO-F Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Fire-rated Device, 84" Door Height, Exit Only, Less trim, Less Dogging, Satin Chrome Finish, Field Reversible
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Product Specs
Manufacturer | Von Duprin |
SKU | 9827EO-F |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL 10C |
ANSI Number | A156.3 2014, Grade 1 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 3 Years |
Fire Rated | Yes |
Burglar Rated | No |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Surface Vertical Rod |
Mechanical Function | Exit Only, Accepts Various Trim |
Device Length | 36" or 48" |
Hand | Field Reversible |
Dogging Options | Less Dogging |
Top Strike | 299 |
Strike Bottom | 304L |
Includes Trim | No |
Trim Type | Less trim |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 3-11/16" |
Door Material | All Types |
Door Width | 28" - 36" or 34" - 48" |
Door Height | 84" |
Door Thickness | 1-3/4" |
Fire Rated | Yes |
Reversible | Yes |
Product Type | Surface Vertical Rod Exit Devices |
