Description

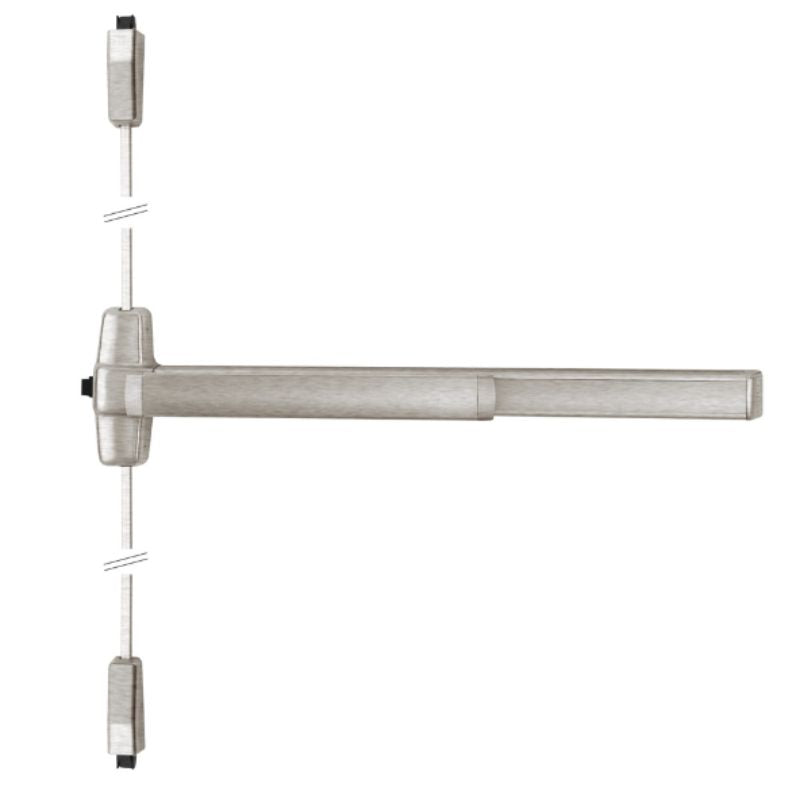

Von Duprin 9857EO-F 3 32D Grade 1, 3 Point Exit Bar, 36" Device, Fire Rated, 84" Door Height, Exit Only, Less Dogging, 26D Satin Chrome Finish
9857 3-Point Locking Exit Device
The 9857 device has a smooth mechanism case.
Three-point latching device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts.
- Device functions: The device ships EO/DT/NL. Field selectable. For TP, K, or L, remove the NL drive screw from the device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 3913/16" (1011 mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw Deadlocking rim bolt, 3 /4" (19mm) throw
- Door undercut: 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm). Extension rods are available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available
Technical Specifications
Physical Appearance | Wide Stile Pushpad |
Device Type | 3 Point |
Mechanical Function | Exit Only, Accepts Various Trim |
Device Length | 36" |
Hand | Non-Handed |
Dogging Options | Less Dogging |
Top Strike | 299 |
Strike Bottom | 304L |
Includes Trim | No |
Trim Type | Less trim |
Includes Cylinder(s) | No |
Minimum Stile Size | 4-1/2" |
Door Material | Wood or Metal |
Door Width | 28" to 36" |
Door Height | 84" |
Door Thickness | 1-3/4" - 2-1/4" |
Fire Rated | No |
Reversible | Yes |
Product Type |
Three-Point Locking Exit Devices |
Document Center
Handing Chart
