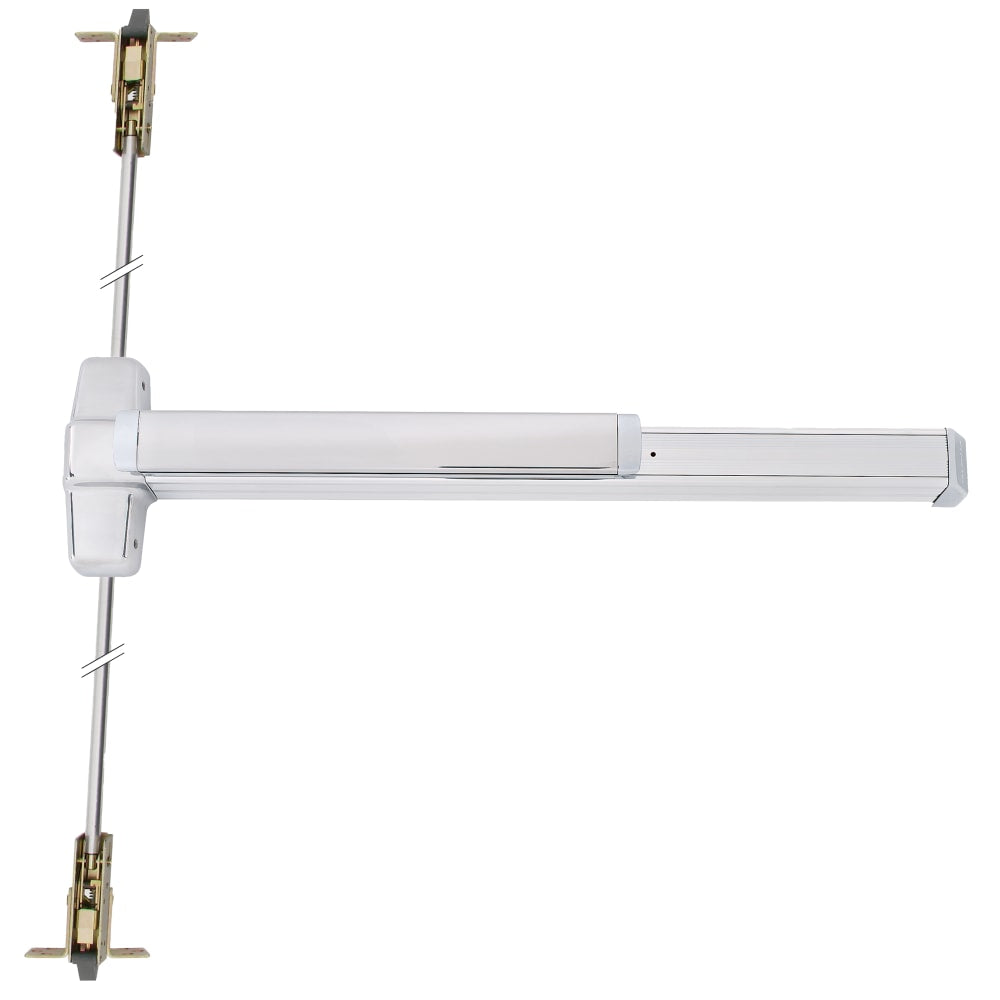

Von Duprin 9947EO 3 Grade 1 Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Exit Only, Hex Key Dogging, Field Reversible
The 9947 device has a grooved mechanism case.
The 9947 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
