Description

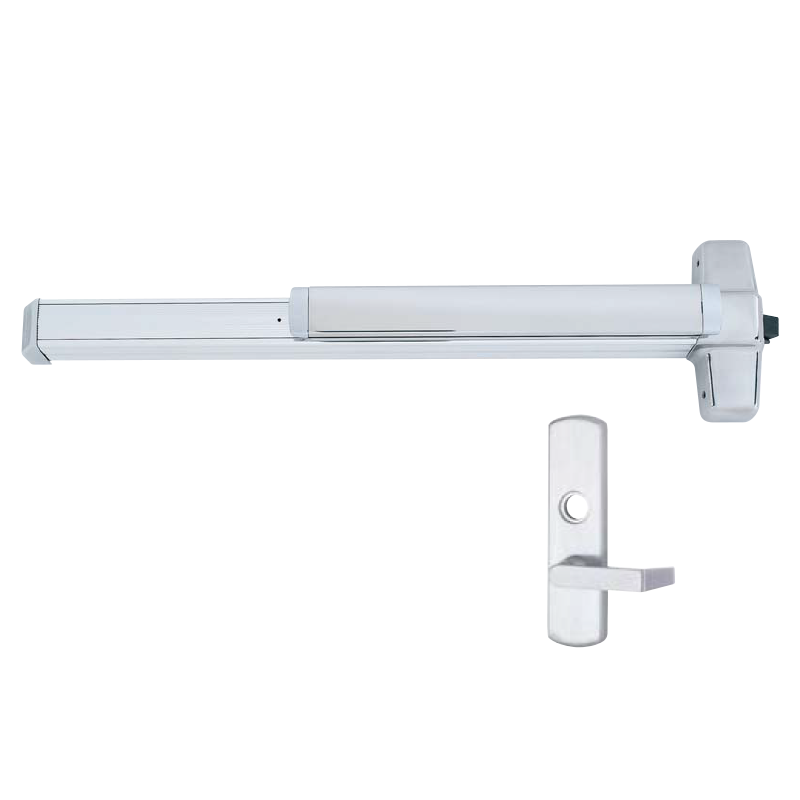

Von Duprin 99L-BE-06 3 26D RHR Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Passage Function, 06 Lever with Escutcheon, Hex Key Dogging, US26D/626 Satin Chrome Finish, Field Reversible
99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder), or SS (signal switch). See the opposite page for available outside trim and device functions. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs - consult template). Finishes - US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D are available with 98 Series only.
Technical Specifications
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Passage |
Device Length | 36" |
Hand | Field Reversible |
Dogging Options | Hex Key Dogging |
Includes Trim | Yes |
Trim Type | Lever |
Trim Design | Lever with Escutcheon |
Trim Part No. | 996L-BE-06-R/V 26D |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 4-1/2" |
Door Material | Metal or Wood |
Door Width | 28" - 36" |
Door Thickness | 1-3/4" - 2-1/4" |
Fire Rated | No |
Reversible | Yes |
Product Type | Rim Exit Devices |
