Description

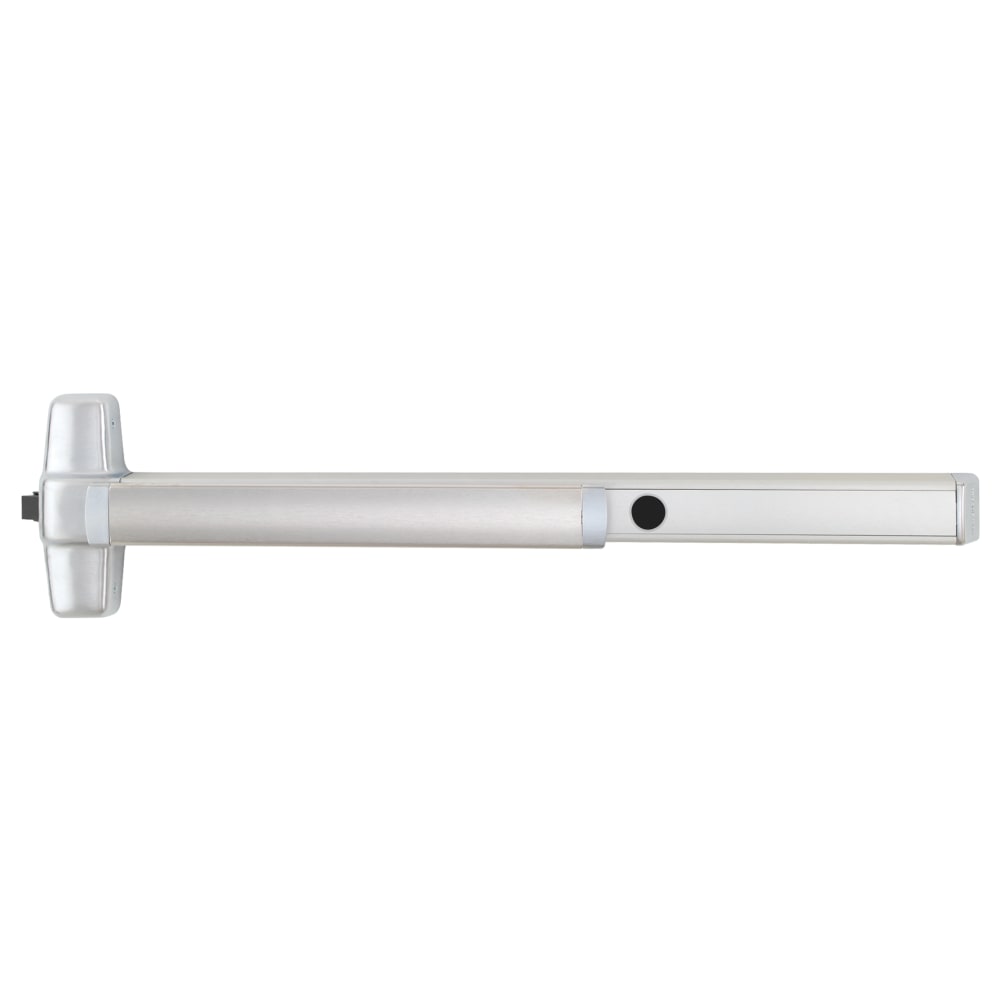

Von Duprin CD98EO 3 Grade 1 Rim Exit Device, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Cylinder Dogging, Non-handed
98 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder), or SS (signal switch). See the opposite page for available outside trim and device functions. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs - consult template).
Product Specs
Manufacturer | Von Duprin |
SKU | CD98EO 3 |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL Listed |
ANSI Number | A156.3 2014 |
BAA Qualified | Yes |
Limited Warranty | 3 Years |
Fire Rated | No |
ADA Compliance | No |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Exit Only |
Device Length | 36" |
Hand | Non-Handed |
Dogging Options | Cylinder Dogging |
Includes Trim | No |
Trim Type | Less Trim |
Trim Design | Blank Plate |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 4-1/2" |
Door Material | Wood or Metal |
Door Width | 28" to 36" |
Door Thickness | 1-3/4" to 2-1/4" |
Fire Rated | No |
Reversible | No |
Product Type | Rim Exit Devices |
Document Center
Handing Chart
