Description

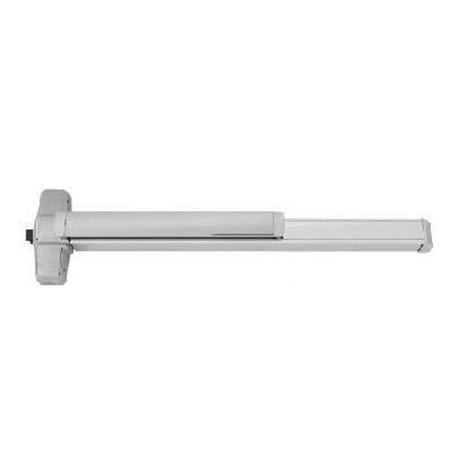

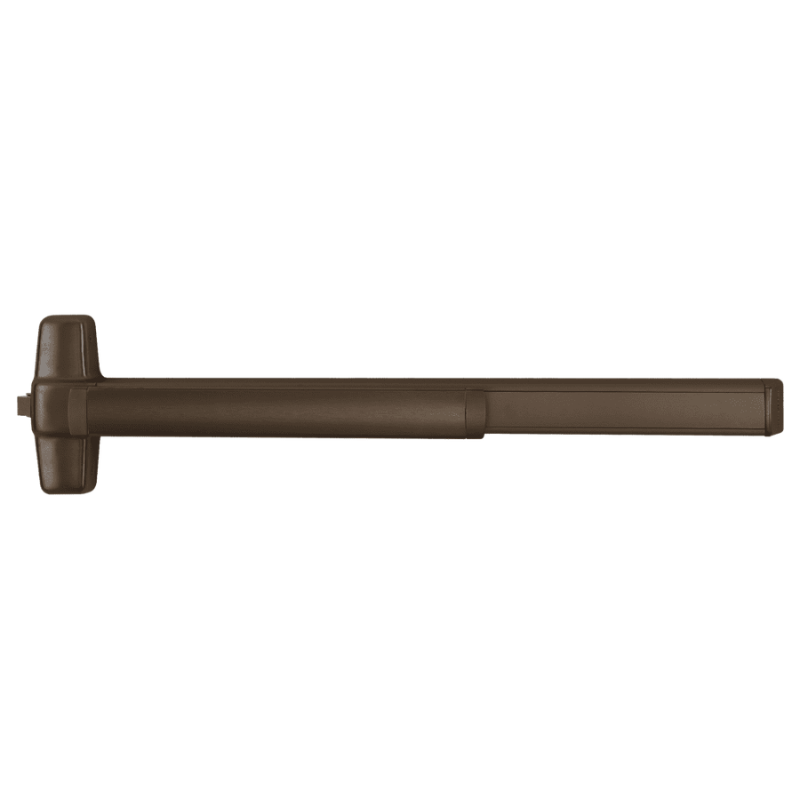

Von Duprin QEL98EO 4 313 Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48" Device, Exit Only, Less Trim, Motorized Latch Retraction, Less Dogging, 313 Dark Bronze Anodized Aluminum Finish, Non-handed
98 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder), or SS (signal switch). See the opposite page for available outside trim and device functions. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs - consult template).
Technical Specifications
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Exit Only, Accepts Various Trim |
Device Length | 48" |
Hand | Non-handed |
Electric Options | Motorized Latch Retraction |
Dogging Options | Less Dogging |
Includes Trim | No |
Trim Type | Less Trim |
Trim Design | Less Trim |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 3-5/8" |
Door Material | Metal or Wood |
Door Width | 34" - 48" |
Door Thickness | 1-3/4" - 2-1/4" |
Fire Rated | No |
Reversible | No |
Product Type | Rim Exit Devices |
