Description

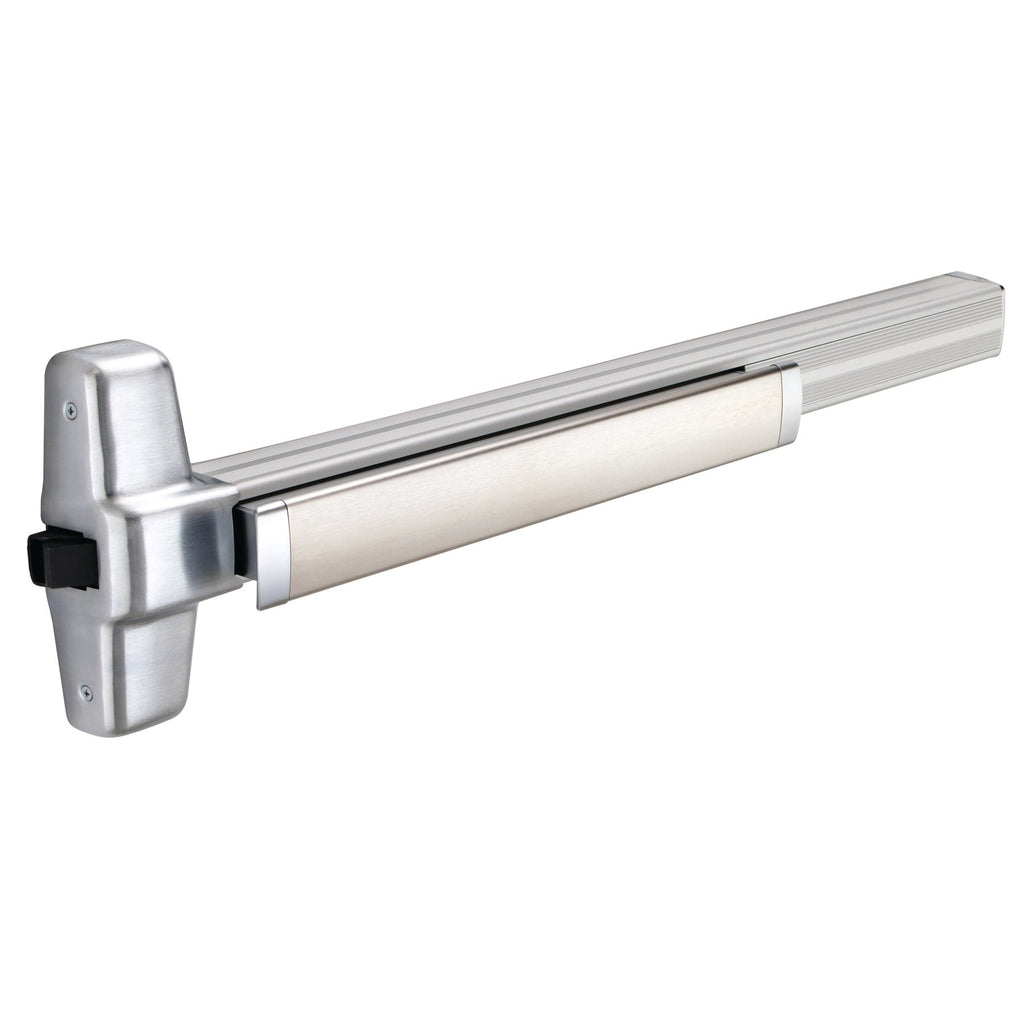

Von Duprin QEL99EO-F Rim Panic Device With Quiet Motorized Latch Retraction, Exit Only, Less Trim, Less Dogging, Grade 1, Non Handed
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Compatible Trims with the QEL99EO-F Rim Fire Exit Device
Combine the QEL99EO-F Rim Fire Exit Device with any of the below trims to enhance it's function
Von Duprin 996L Lever Trims - Accepts Schlage Rim Cylinders
996L-06-R/V Lever Trim - Classroom Function, 06 Lever Style
996L-03-R/V Lever Trim - Classroom Function, 03 Lever Style
996L-07-R/V Lever Trim - Classroom Function, 07 Lever Style
996L-17-R/V Lever Trim - Classroom Function, 17 Lever Style
996L-NL-06-R/V Lever Trim - Classroom Function, 06 Lever Style
996L-NL-03-R/V Lever Trim - Classroom Function, 03 Lever Style
996L-NL-07-R/V Lever Trim - Classroom Function, 07 Lever Style
996L-NL-17-R/V Lever Trim - Classroom Function, 17 Lever Style
Von Duprin 990 Trims - Accepts Rim Schlage Cylinders
990 DT Dummy Pull Trim - No Cylinder
QEL - Quiet Electric Latch Retraction
The QEL provides electric control to an exit device with minimal noise. Best suited for places like hospitals, libraries, museums, theaters, and wherever too much sound could be a problem.
With the QEL, it can retract the latchbolt in and out using a control system. This works for Von Duprin's 98/99, 94/95, 33A/35A, and 22 Series panic and fire-rated door devices. Or, you can get it as a kit to retrofit existing devices.
QEL Features and Benefits
- Standard 2 amp power supply, enabling longer wire runs from the power source
- QEL board has electronic LEDs, providing a visual indication of potential errors
- Auto-adjust latch retraction
- Vandal resistant
- The QEL is UL and cUL listed for use on panic exit hardware and fire exit hardware.
Product Specs
| Manufacturer | Von Duprin |
| SKU | QEL99EO |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 1 Year |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 36" or 48" |
| Hand | Non-handed |
| Electric Options | Motorized Latch Retraction |
| Dogging Options | Less Dogging |
| Includes Trim | No |
| Trim Type | Less Trim |
| Trim Design | Less Trim |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 3-5/8" |
| Door Material | Metal or Wood |
| Door Width | 34" - 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
