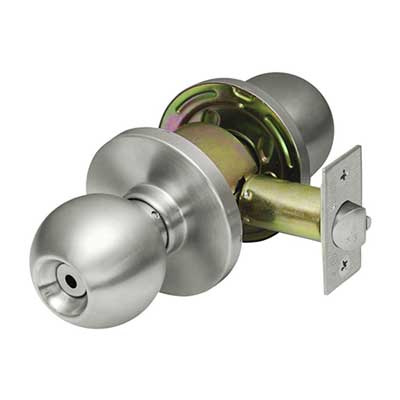

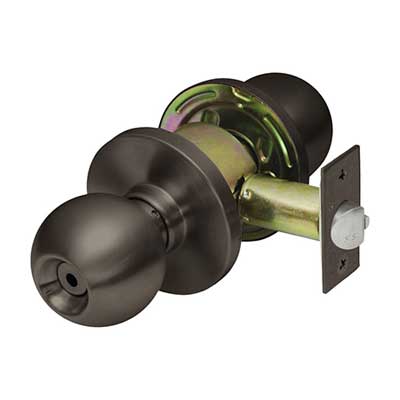

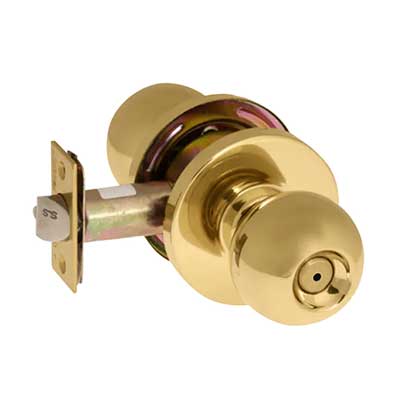

Corbin Russwin CK4430-GWC, Privacy-Bedroom-Bathroom Cylindrical Lock, Global Knob, Grade 2, Non-Keyed, Non-Handed, Select Finish Option
Function: Deadlocking latch bolt by knob either side Outside knob locked by push button Outside knob unlocked by turning slotted button outside by rotating inside knob, or by closing door Inside knob always free
The CK4400 Series is ideal for quality residential and light commercial buildings such as homes, apartments, motels, and offices. This series has also a wide array of functions.
- Handing Field reversible.
- Door Thickness 1 3/8" (35mm) - 1 3/4" (44mm) standard.
- Backset 2 3/4" (70mm) standard. Optional: 2 3/8" (60mm), 3 3/4" (95mm) and 5" (127mm).
- Lock Chassis Steel, and zinc dichromate for corrosion resistance.
- Front Wrought brass, bronze, or stainless steel, 2 1/4" (57mm) x 1 1/8" (29mm) standard. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Optional fronts available
- Latchbolt Brass or stainless steel, 1/2" (13mm) throw.
- Auxiliary Latchbolt Deadlocking latch bolt prevents manipulation when the door is closed.
- Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4 7/8" (124mm) x 1 1/4" (32mm) x 1 1/4" (32mm) lip to center. Optional strikes, lip lengths, and ANSI wrought strike box available; see How to Order, page 9.
- Cylinder Brass, 6-pin L4 keyway, 0-bitted standard.
- Keying Features Available Master keying Construction master keying
- Keys Two nickel silver standard.
- Warranty One-year limited.
