Description

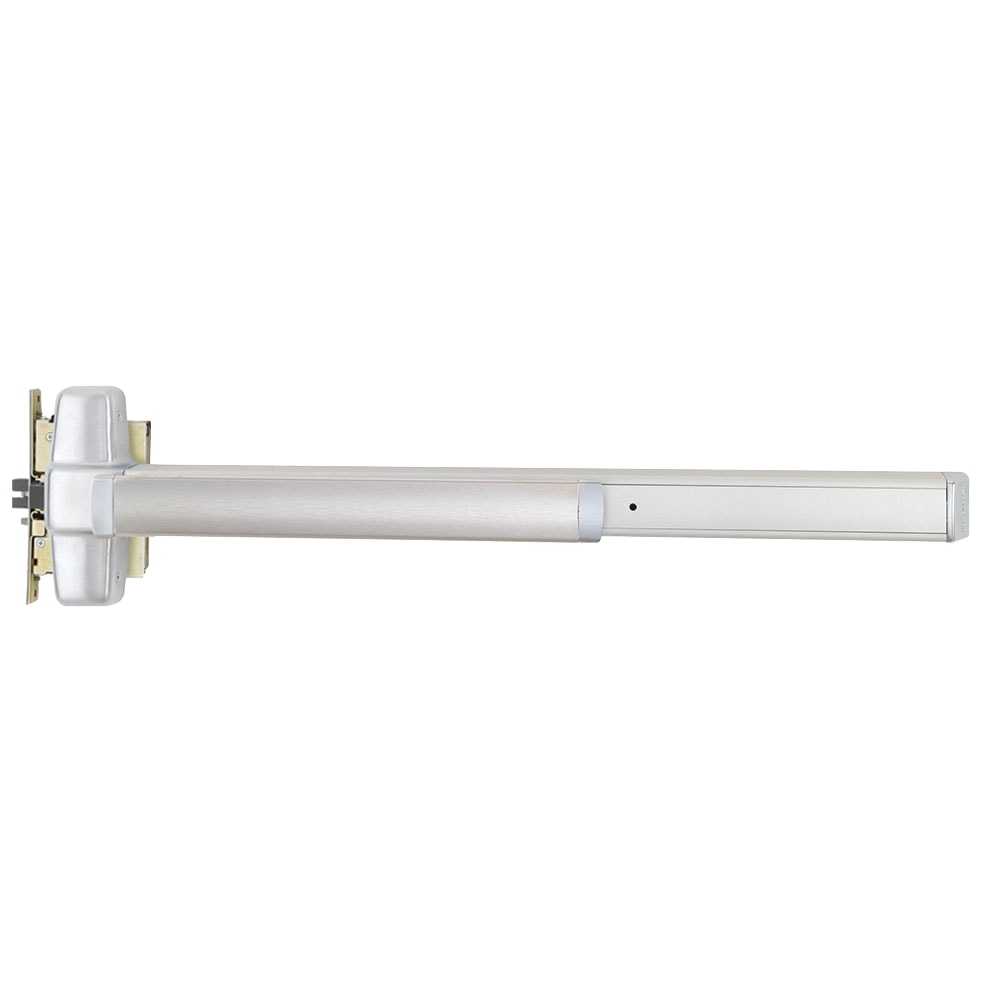

Von Duprin 9875EO-4 Mortise Exit Device, Wide Stile Pushpad, 48 In For 34-48 Door Width, Exit Only, Less Trim, Hex Key Dogging, Grade 1, Non Handed
The Von Duprin 9875EO Mortise Exit Device is a high-quality, exit solution designed for wide stile doors. It features a pushpad for easy operation and is Grade 1 rated, ensuring durability and reliability. This device is non-handed and includes trim and dogging options.
The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
98 Series Mortise Exit Device
Fire exit mortise lock devices with a smooth mechanism case.
The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm).
- Device Functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
- Device Lengths:
- 3' – 2' 4" to 3' (711 mm to 914 mm) door size
- 4' – 2' 10" to 4' (864 mm to 1219 mm) door size
- Device centerline from the finished door:
- 39-13/16" (1011 mm)
- 39-11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
- Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar depressed – 3-1/16" (78 mm)
- Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal or wood doors.
Product Specs
| Manufacturer | Von Duprin |
| SKU | 9875EO-4 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 2014 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Mortise |
| Mechanical Function | Exit Only |
| Device Length | 48" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Trim Type | Less Trim |
| Trim Part No. | Less Trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-3/4" |
| Door Material | Wood or Metal |
| Door Width | 34" to 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Mortise Exit Devices |
