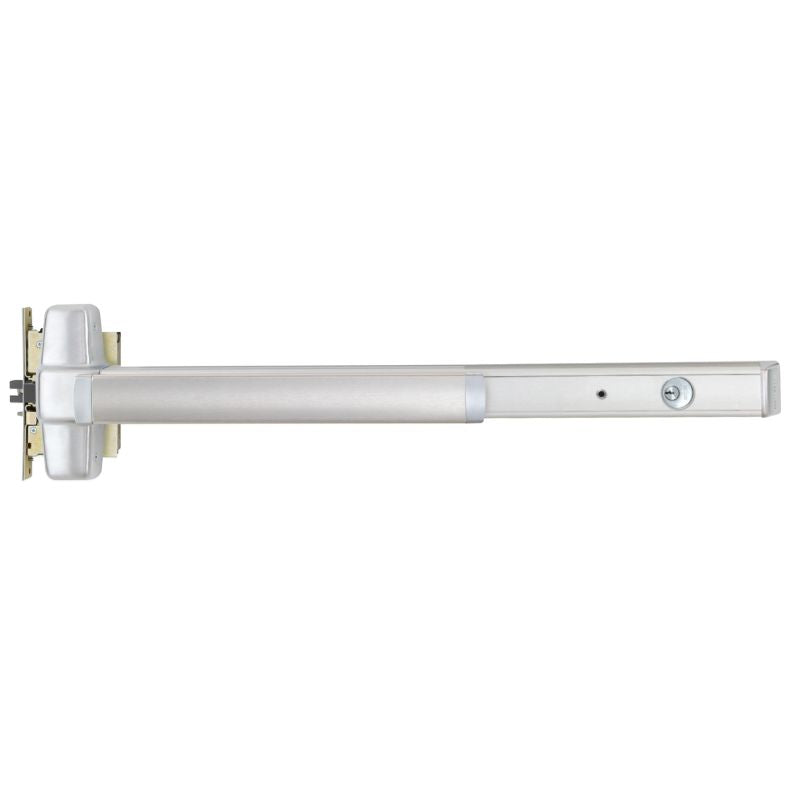

Von Duprin CXA9875EO-F-4 Fire Rated Chexit Delayed Egress Mortise Exit Device, Exit Only

  • SKU: CXA9875EOF4626
Von Duprin CXA9875EO-F-4
Von Duprin CXA9875EO-F-4
All VON DUPRIN Products

Von Duprin CXA9875EO-F-4 Fire Rated Chexit Delayed Egress Mortise Exit Device, Exit Only

  • SKU: CXA9875EOF4626
$4,014.78/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin CXA9875EO-F-4 Fire Rated C...
Quantity
–
+
From $4,014.78
Von Duprin 996L-M-626 Mortise Exit De...
Quantity
–
+
From $448.80
Schlage Mortise Cylinders- For Von Du...
Quantity
–
+
From $94.25
Command Access Technologies MLRK1-VD ...
Quantity
–
+
$474.38
Total

Von Duprin CXA9875EO-F-4 Fire Rated Delayed Egress Mortise Exit Device, Wide Stile Pushpad, 48 in For 34-48" Door Width, Chexit®(CX) Assembly, Exit Only, Less Trim, Less Dogging, Delayed Egress Device 15 Seconds, Grade 1, Non Handed

The Von Duprin CXA9875EO-F-4 Fire Rated Mortise Exit Device is expertly designed for fire safety purposes, with a delayed egress feature of 15 seconds for added protection. It is a grade 1 device that is non-handed, and comes with a Wide Stile Pushpad suitable for 34-48" door widths. The Chexit®(CX) Assembly allows for easy exit, and the device itself is available without trim or dogging.

Delayed egress-The Chexit® (CX)

The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs, as well as the requirements of NFPA 101 for "Special Locking Arrangement" and IBC "Special Egress-Control Devices". All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly. Numerous configurable options allow the device to be customized for the specific code or application requirements.  The standard Chexit device sounds an alarm and keeps the door secured for 15 seconds following an exit attempt with
immediate release upon fire.

The Chexit device includes a 6" x 20" decal for application on door. “PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS”

The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.

98 Series Mortise Exit Device

Fire exit mortise lock devices with a smooth mechanism case.

The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm).
  • Device Functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
  • Device Lengths:
    • 3' – 2' 4" to 3' (711 mm to 914 mm) door size
    • 4' – 2' 10" to 4' (864 mm to 1219 mm) door size
  • Device centerline from the finished door:
    • 39-13/16" (1011 mm)
    • 39-11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
  • Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar depressed – 3-1/16" (78 mm)
  • Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal or wood doors.
Manufacturer Von Duprin
SKU CXA9875EOF-4
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3 2014
Restrictions None
BAA Qualified Yes
Limited Warranty 1 Year
Fire Rated Yes
Burglar Rated No
ADA Compliance No


Physical Appearance Wide Stile Pushpad
Device Type Mortise
Mechanical Function Exit Only
Device Length  48"
Hand Non-Handed
Electric Options Delayed Egress Device 15 Seconds
Dogging Options Less Dogging
Includes Trim No
Trim Type Less Trim
Trim Part No. Less Trim
Includes Cylinder(s) No
Minimum Stile Size 4-3/4"
Door Material Wood or Metal
Door Width 34" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Delayed Egress Exit Device
